Fukuda FRE-203XG Laser Kit

Available for Purchase or Hire

The Fukuda FRE-203XG Rotary Laser Level Kit (2nd Generation) is available for purchase or the 1st Generation on a weekly hire basis from only £75.98 inc. VAT. If you would like to learn more about hiring this kit please, Click Here.

Also available as an Outlet version

Why not Click Here to view our Laser Levels Online | Outlet. Outlet products are typically cheaper than normal retail versions because some items may have small cosmetic flaws that don’t affect functionality but keep them from being sold at full price.

Product Overview

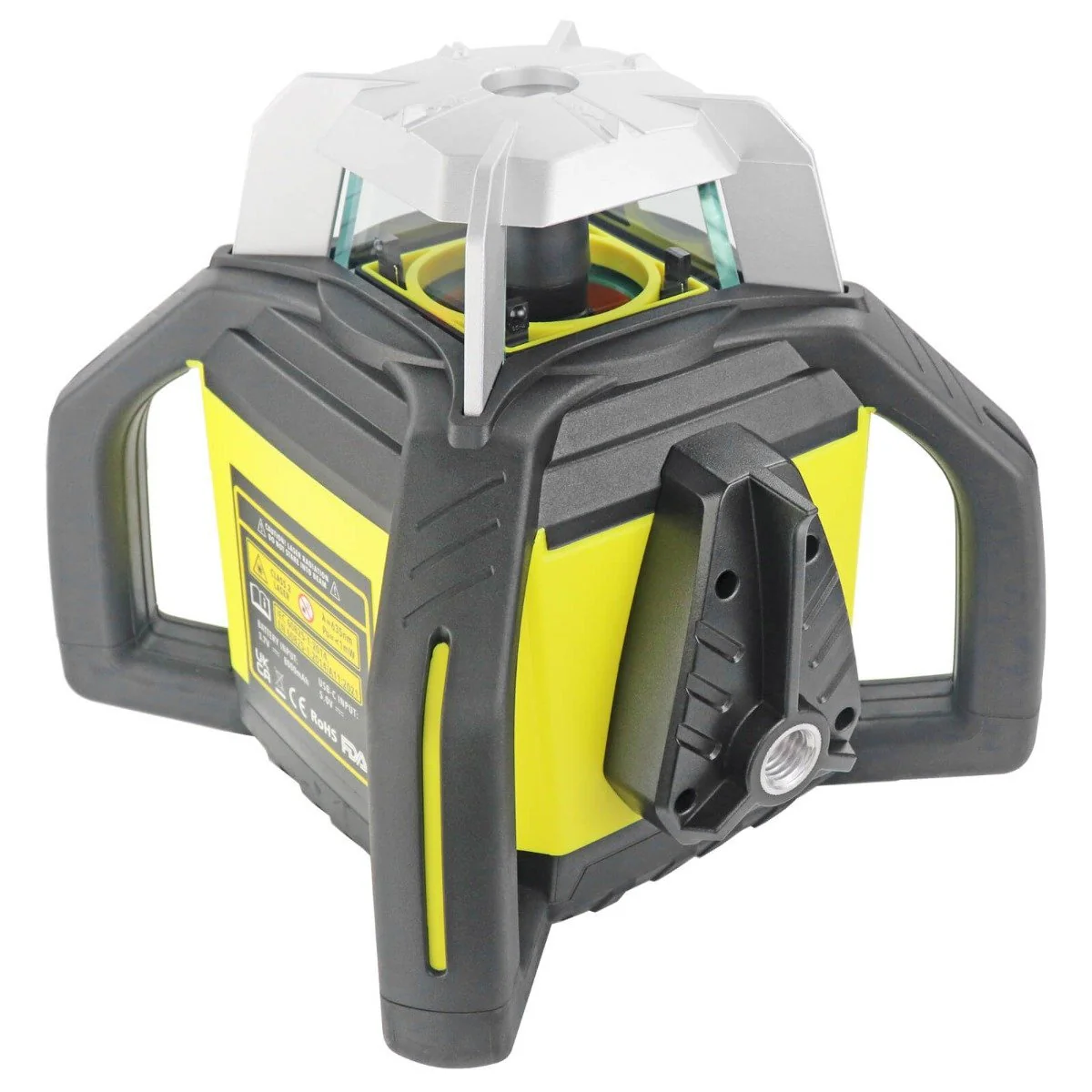

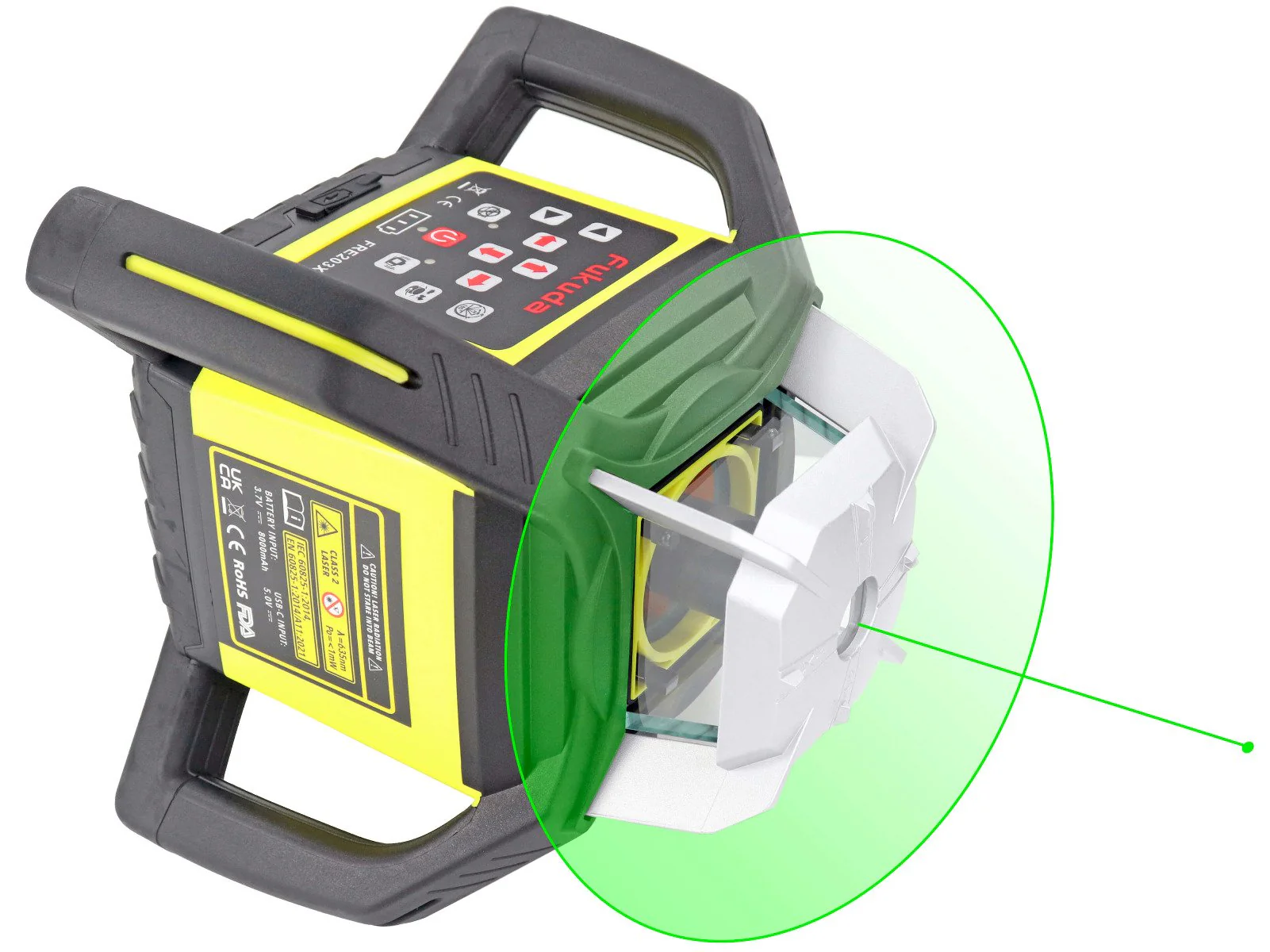

The Fukuda FRE-203XG (2nd Gen) is an accurate, very bright GREEN beam laser level which is well featured & competitively priced. It replaces the extremely reliable Fukuda FRE-301G, to which it shares many of its internal components. It builds upon this foundation to incorporate many new features and improvements. Like others in the Fukuda FRE-203X range, this model is extremely robust, having a drop-test specification of 1 metre onto concrete. The top glass "lighthouse" is protected by a metal die-cast cover whilst a robust roll cage adds increased durability.

The FRE-203XG quickly auto levels to set horizontals, verticals and 90-degree site squaring. An invaluable feature.

In addition, this laser can be switched to Manual mode where the spinning beam can set a grade (fall) in the X-axis, Y-axis or both together (dual grade).

You can only grade match with this system and not key in a value, however, it will set up to a 1:11.1 (9%) grade.

Features

For Indoor & Outdoor use with a 515nm, class 3R green laser

Sealed waterproof construction (IP66)

Self-levelling both horizontally & vertically

Up and Down dot for setting Plumb & groundworks squaring

(Up dot - Green, Down dot - Red)

Accurate 3 axis electronic sensor

One metre drop test specification onto concrete

Infrared control via handheld Remote

Anti-Drift system (Bump sensor)

Dual Grade & SCAN facility

Auto shut-off - if instrument goes outside of its levelling range

Low battery indication

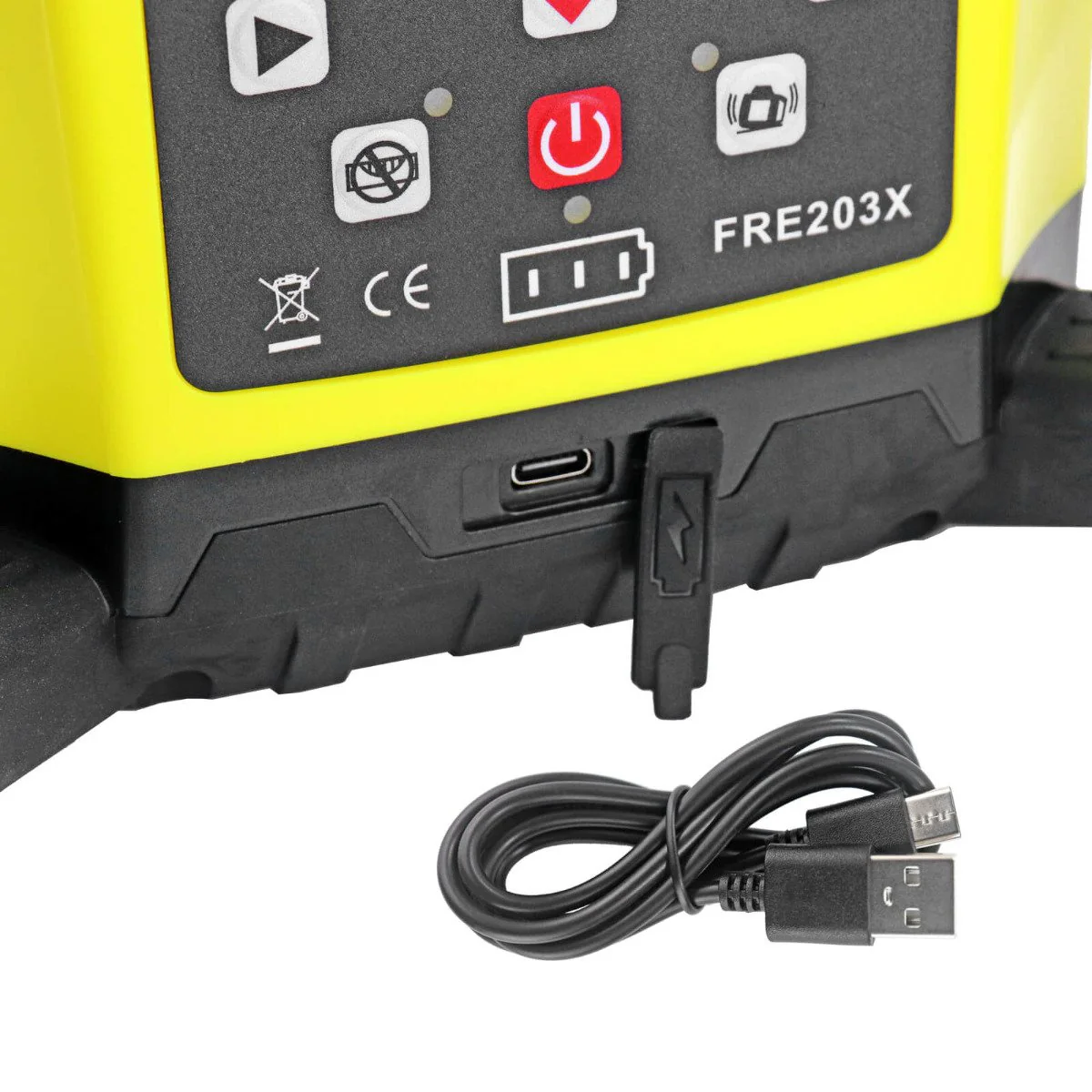

Lithium rechargeable battery & type USB-C charging system

Spare lithium battery pack is included

3 Year Warranty

You have the facility to totally stop or move the green dot slowly in either direction using the remote control. The rotational speed is adjustable in 4 increments up to max. of 600 rpm.

For Indoor use, the SCAN facility comes into its own. This enables the User to stop the dot, then make it oscillate as a short intense green line in one area of the room only. Left/right keys on the remote control moves this laser line to the exact area of working. A really useful feature.



DUAL Axis Grading

You can keep XX axis auto level, whilst setting a Grade (tilt angle) on the YY axis. This is helpful for setting falls of drainage, car-parks & access ways. Or you can set grades in both axis together (ie. DUAL Grade facility).

Additionally, a perfectly plumb laser green dot is generated above the instrument via the prism system. With the instrument set on its side to spin vertically, this dot together with the rotating beam can be used to set 90 degree right angles for groundworks site Squaring etc.

Specification

Horizontal accuracy: +/- 2.8mm over 30 metres (+/-20 arc seconds)

Vertical accuracy: +/- 2.8mm over 30 metres (+/20 arc seconds)

Auto (self) levelling range: +/-5 degree (instrument will auto level on a surface within 5 degrees of true level)

Measuring range: 500 metres diameter (using the supplied laser detector)

Drop specification test: 1m onto concrete

Rotation speed: 0, 60, 300 & 600rpm

Dual Grade range in both X & Y axis: +/-9% (1 in 11.1)

Laser Output: 515nm, Class 3R visible green laser diode

Laser plumbing: Accuracy +/-1mm / 1.5m

Remote Control range: 20m by infrared.

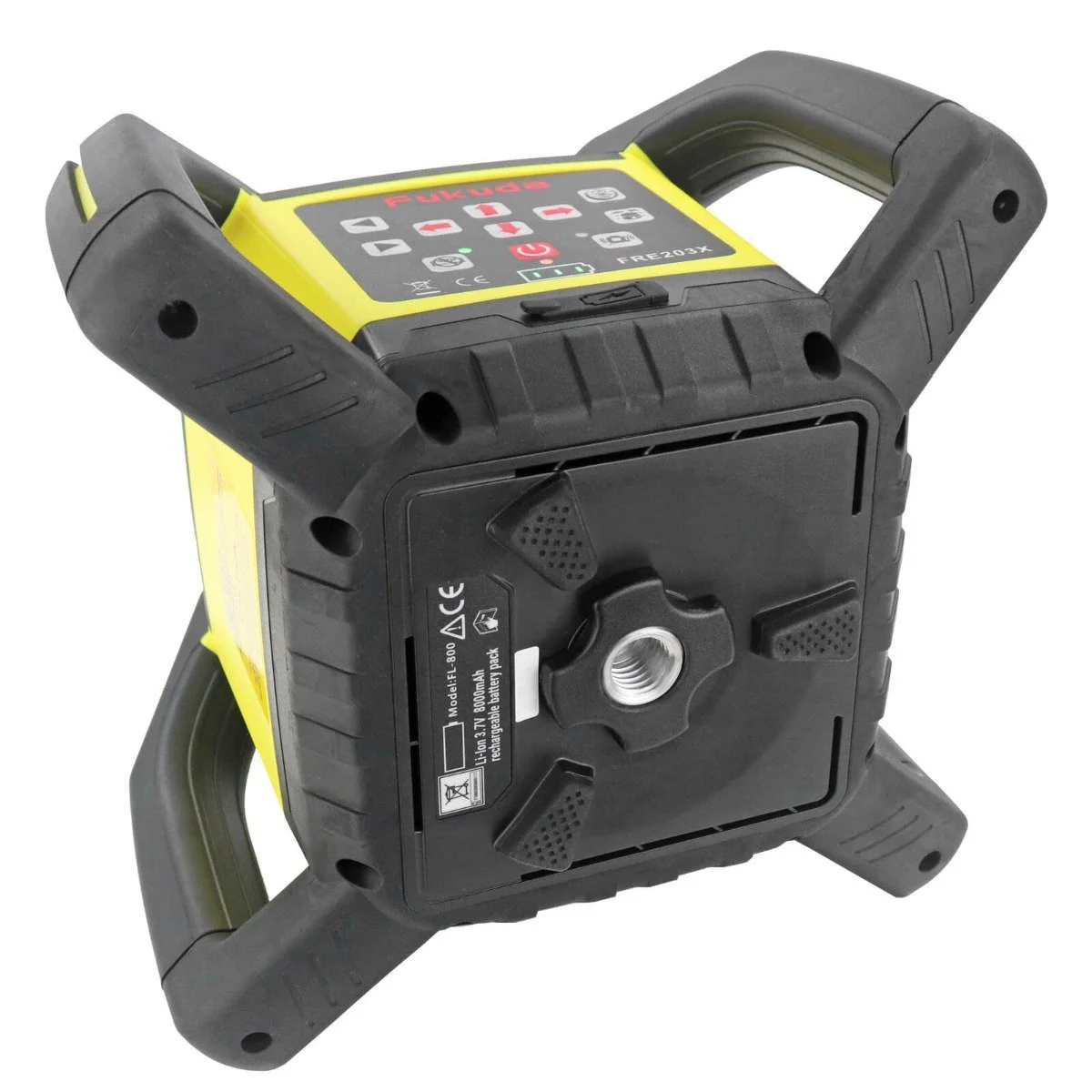

Power: 8000mAh Lithium Battery Pack with USB Type-C Charger.

Running time: approx. 45 hours continuous per battery. 2 batteries included (90 hours runtime total)

Working Temperature: -20 to +50 deg C

Waterproof protection: IP66

Instrument Dimensions: 215(L) x 215(W) x 210H (mm)

Instrument weight: 2.4kg (with fitted battery)

Robust & foam lined, carry case: 440 x 350 x 280 mm

Included in the kit

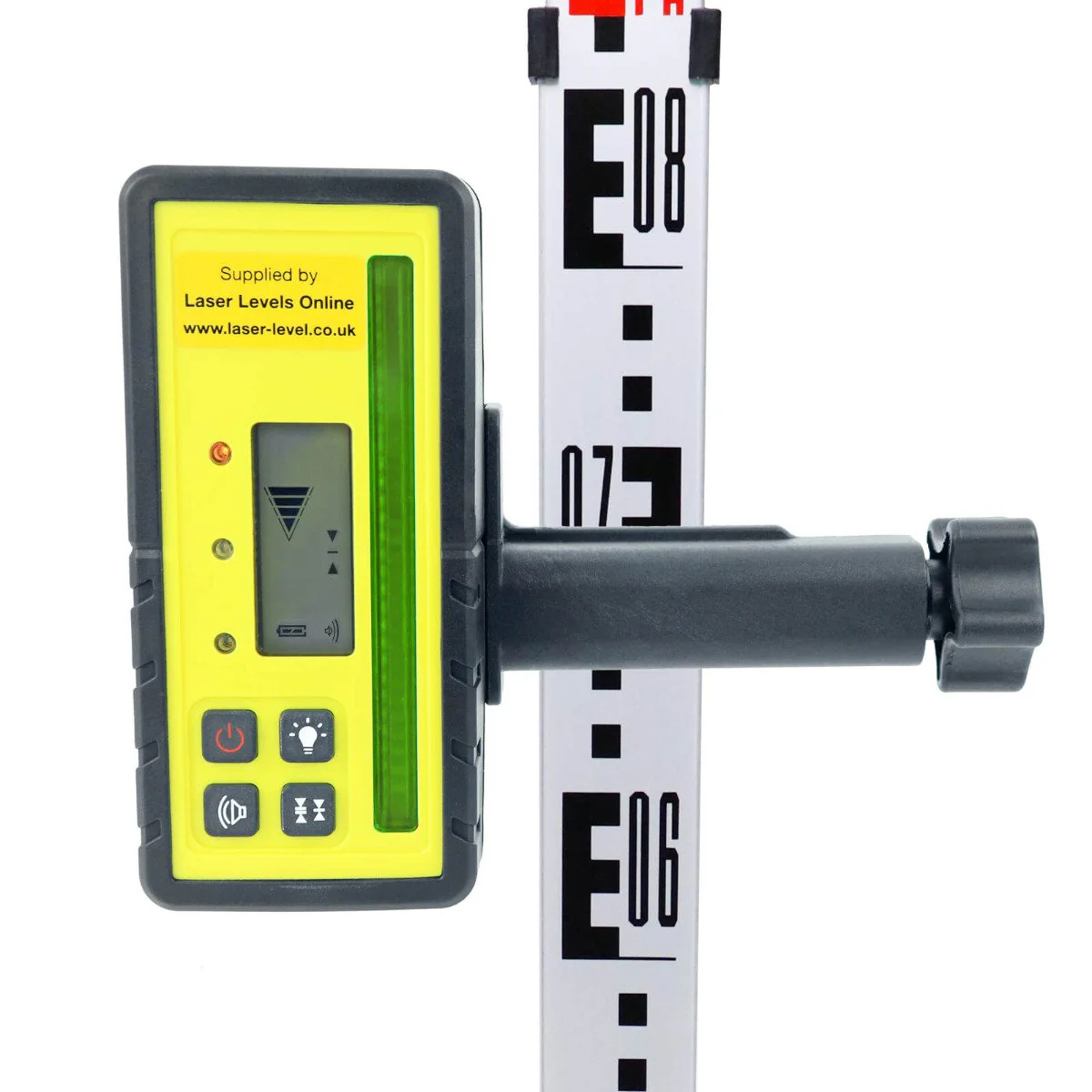

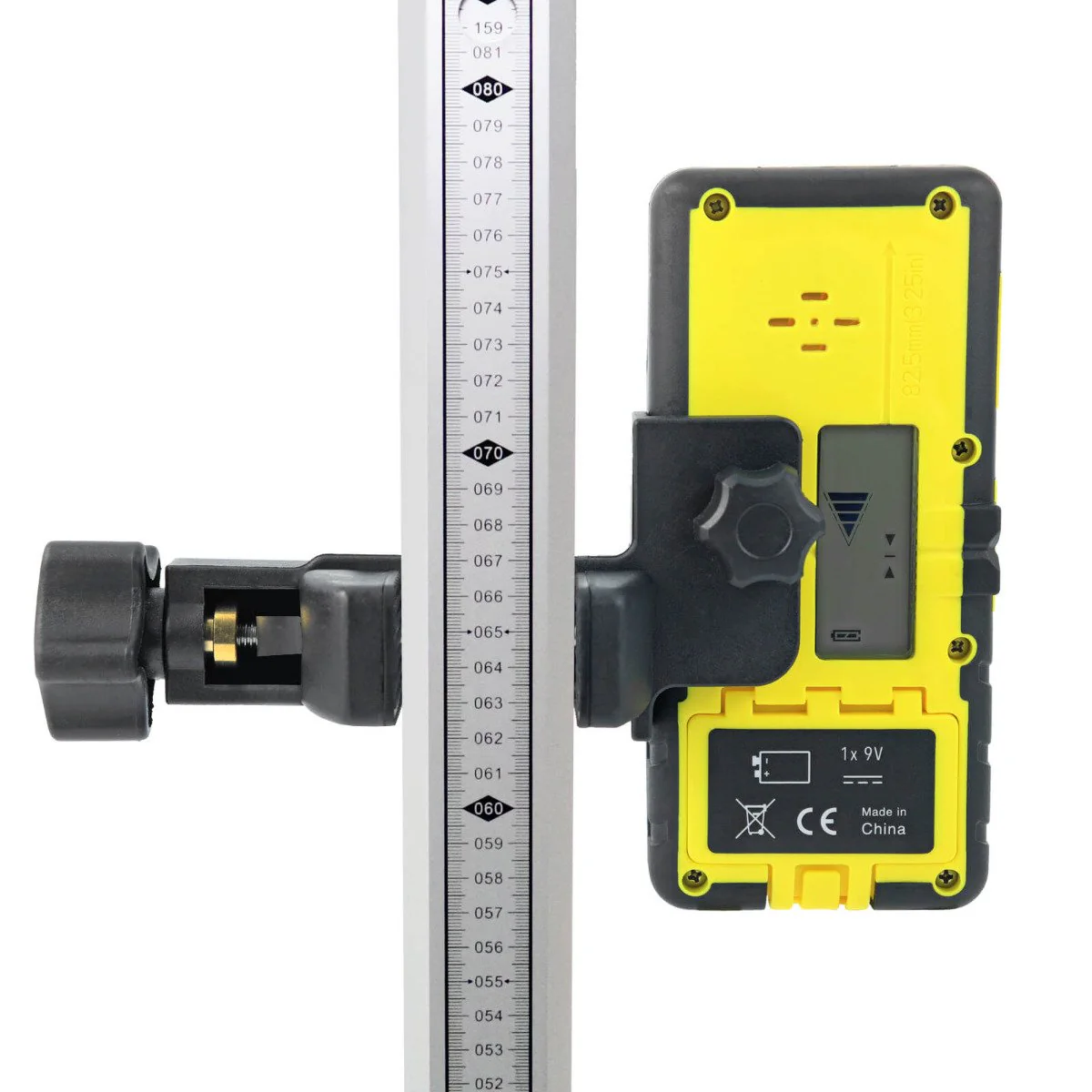

Fukuda FRD600G Laser Detector (receiver) to extend the range of the FRE-203XG to 500 metres diameter.

Features:

Large 125mm reception window picks up the beam quickly and makes it easy to stay in range. Two LCD screens both front & back.

Simultaneous elevation LED's signal in low light levels and over longer distances for easier reading in poor light conditions. A back-light is included.

Multiple deadband sensitivity settings, three in all, allows adaptation to meet all your job site requirements.

Dust and weatherproof housing to IP55.

Very powerful, top & side mounted magnets

Continuous usage, 30 hours battery life with auto switch off facility.

Specification:

Detecting Sensitivity: fine, medium & course settings +/- 1mm, +/-2.5mm & +/- 5mm

Display: Front & back LCD, back-lit (blue tint)

Audible pitch warning. (selectable On, loud/normal & Off)

Power supply: 1 x 9V, PP3 alkaline battery

Operating time: Approx 30 hours continuous, at 20 deg C.

Low battery warning via LCD.

Power Conservation: 15 minutes auto cut-off.

Working temperature: -20 to +50 deg C.

Dimensions: 75 x 38 x 165mm

Weight: 590g (with battery & bracket)

Technical specification

Accuracy:

+/- 2.8mm @ 30 metres, max. operating diameter 500m (250m either side of the instrument).

An accuracy of +/- 2.8mm @ 30 metres is equivalent to 0.09 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual Grade facility:

Dual axis X and Y axis up to +/-9% (1 in 11.1)

Both X & Y axis can be set to give a maximum fall of up to 0.9m at 10m distance away. (ie. 1 in 11.1 & +/-9% grade)

Warranty

Fukuda 3 Year Warranty

This Fukuda FRE-203XG Laser Level is covered by a 3-Year Warranty which covers all defects due to material and workmanship. Fukuda Laser products with this warranty that have failed will be repaired FREE OF CHARGE for three years from the date of purchase.

Also included in the kit

The Fukuda FRE-203XG Kit also includes the following accessories:

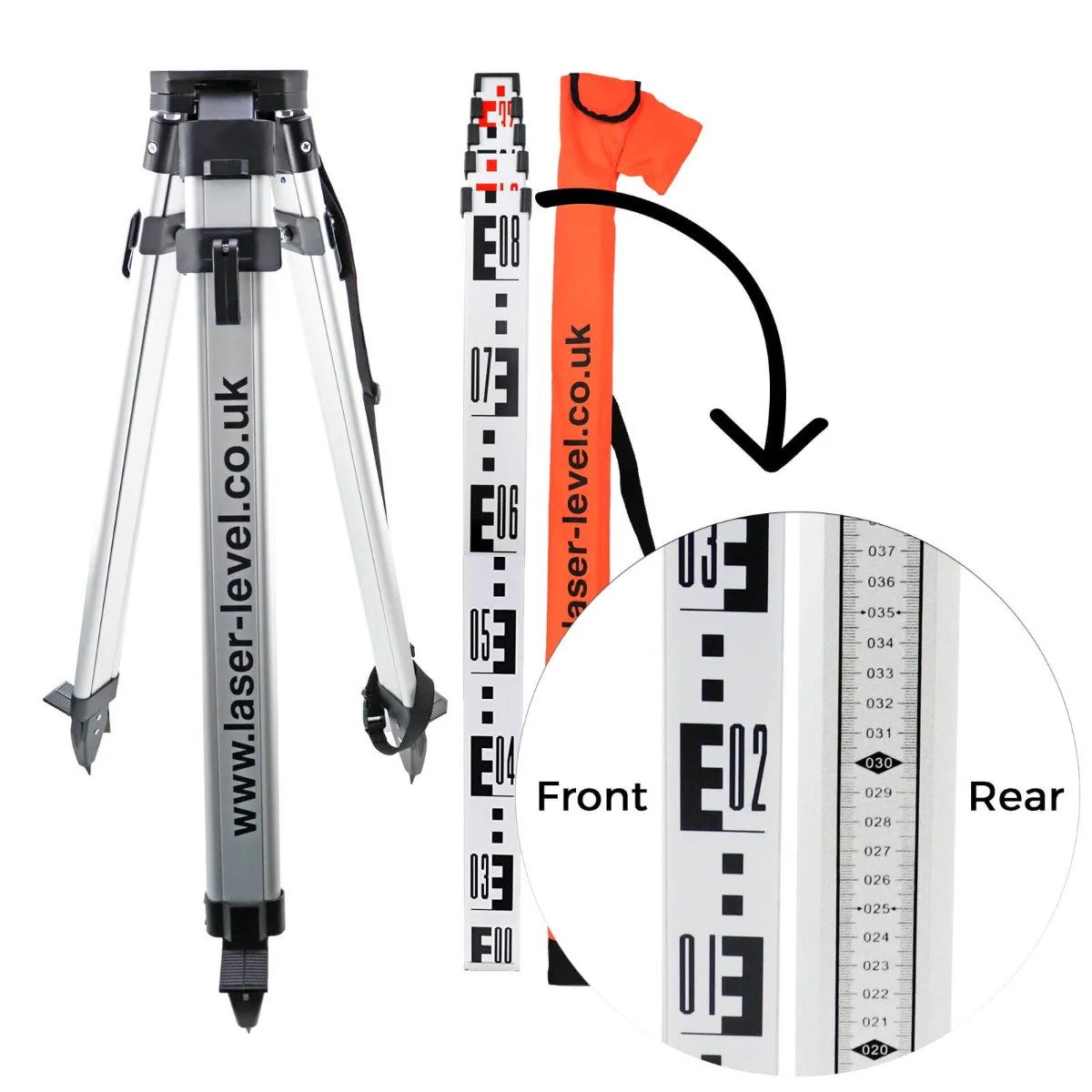

4m Telescopic Levelling Staff (Model: TLS4S)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Do you need ShockWatch® adding to your Laser?

The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.

For further details of ShockWatch®, please Click Here.

Purchase options

Upgrade the kit to include the Fukuda RLR200D-G Detector - The perfect choice for the Fukuda FRE-203XG!



Fukuda Lasers have developed a "top of the range" detector for the Professional Tradesperson which is easy-to-use and accurate. It is also ideal for use with any brand of rotating, red beam laser level.

The RLR200D-G is a highly versatile, well-featured laser detector for both basic and advanced levelling & aligning applications; designed for all interior work, general landscaping, concrete slabs/footings and site preparation Contractors. It features a digital readout of elevation that provides a numeric display of +30mm to -60mm (total 90mm range) & with a 1mm resolution. Accurate measurements can be made without moving the staff clamp, saving time and increasing productivity. The readout is displayed on large front and rear LCD's, showing exactly how far the elevation is from on-grade. A back-light assists readings in low ambient lighting.

Selectable units of measurement can be displayed to meet your specific application: in mm or inches. A 100mm long red pick-up window, allows quick acquisition of the laser beam. Readings are shown in three ways: via back and front displays, coloured LED indication and by audible sound, selectable loud/normal/quiet/off.

This detector is designed to survive tough construction site conditions, being water and dustproof to IP65. It can be used as either a hand-held or staff mounted detector for a wide range of general construction applications.



Features:

Digital readout elevation range of 90mm, so not only will high or low arrows be displayed, but the exact distance from grade will also be numerically displayed. This eliminates the need to get exactly "on-grade" to make measurements, thus speeding up setting-out.

Large 100mm reception height acquires the beam quickly and makes it easy to stay in the beam.

Simultaneous elevation LED's signal in low light levels and over a longer range for easier reading in poor lighting conditions.

Multiple deadband sensitivity settings, three in all, allows adaptation to meet all your jobsite requirements.

Dust and weatherproof housing to IP65.

Continuous usage, 40 hours battery life with auto switch-off facility.



RLR200D-G Detector upgrade includes:

RLR200D-G instrument

4 x type AAA alkaline batteries

FMB-02 Staff Mounting clamp bracket

Instruction & safety manual

Please Note: If you upgrade to the RLR200D-G Detector, the default Detector will be removed from the kit.

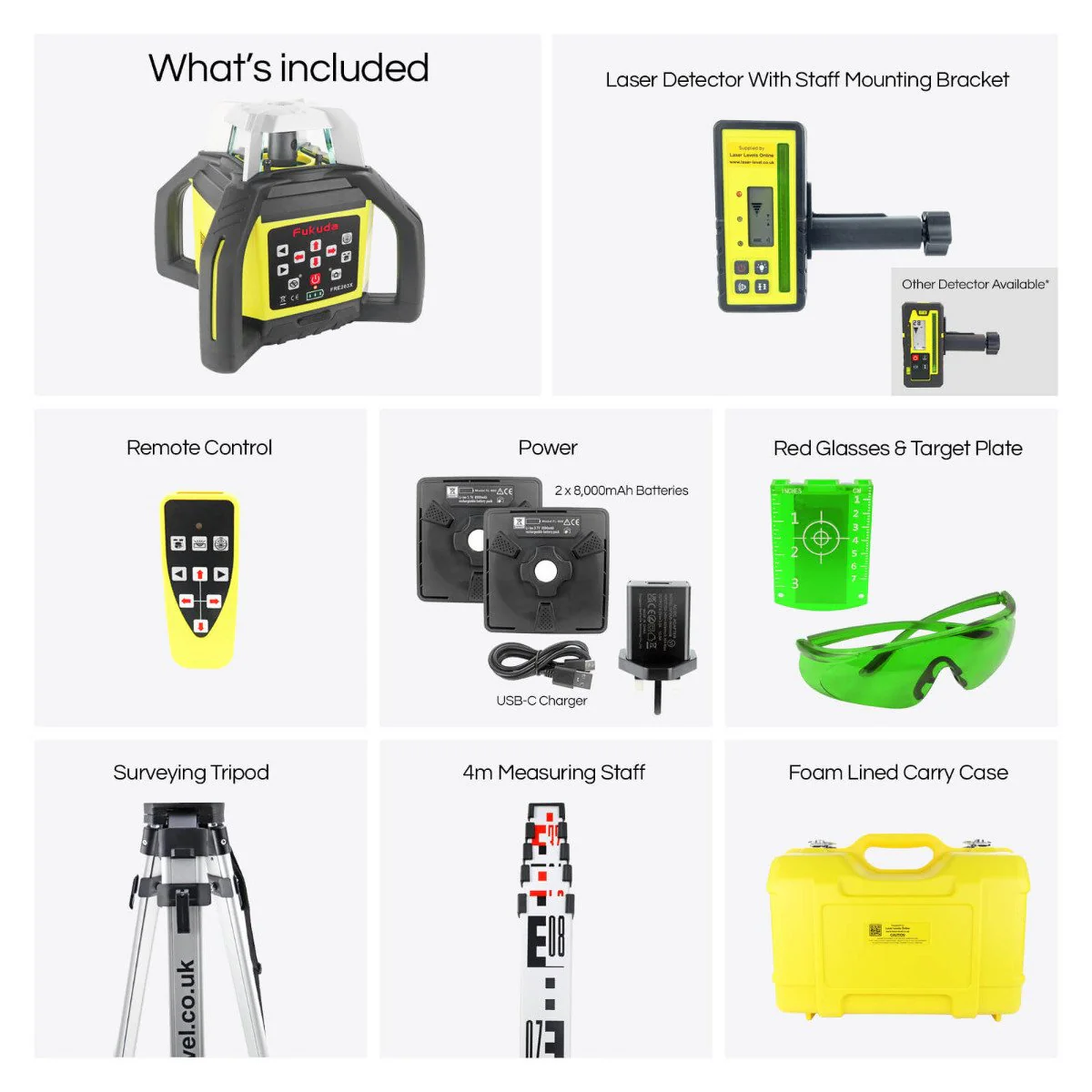

Kit comprises of

2nd Generation Fukuda FRE-203XG Rotary Laser Level (checked and pre-calibrated)

Fukuda FRD600G Laser Detector with staff mounting bracket & batteries

Option to upgrade to the Fukuda RLR200D-G Laser Detector with Digital Readout (mm / inch)

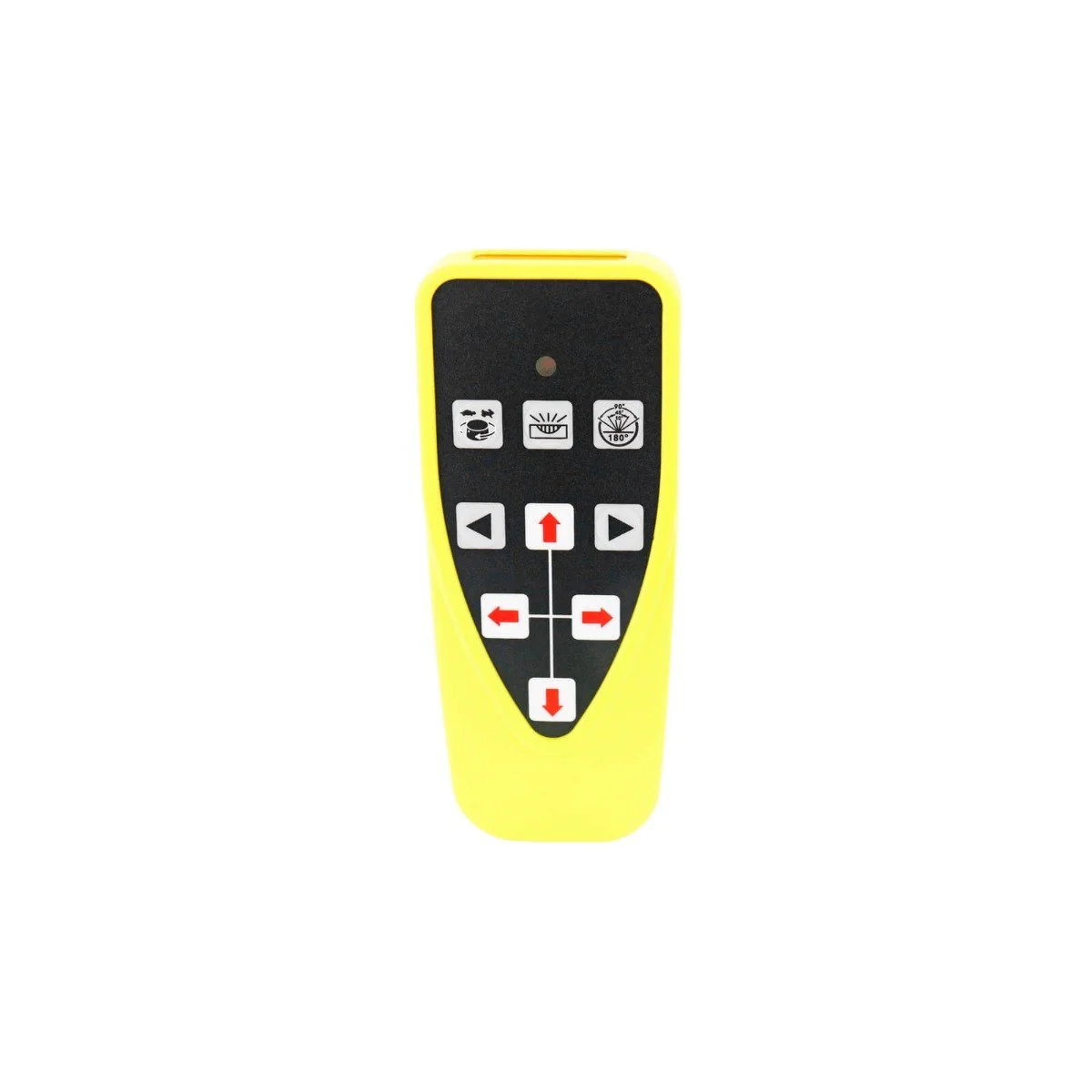

Fukuda RC203X Remote Control

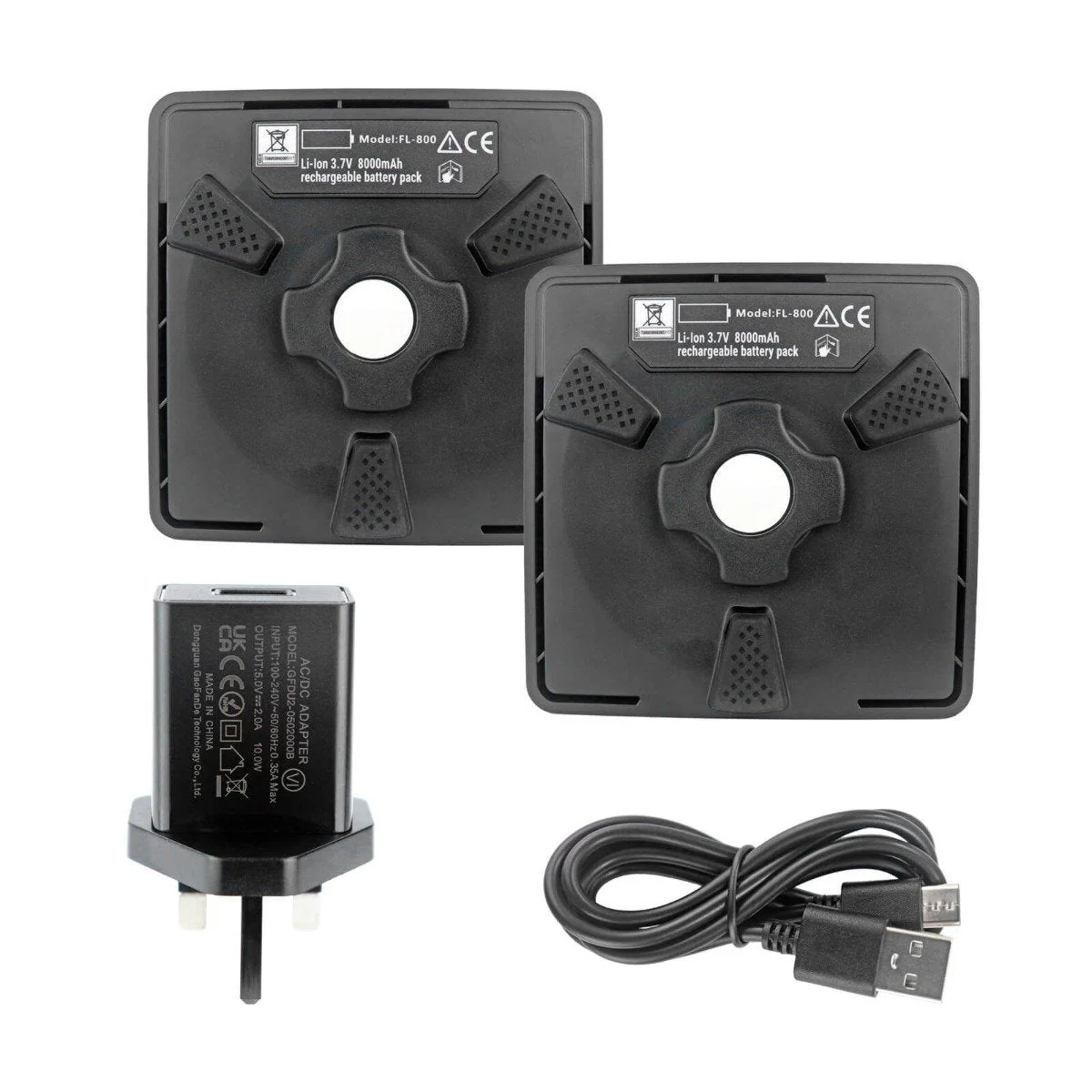

2 x 8000mAh Lithium Battery Packs

USB-C Charging Cable & UK USB Mains Battery Charger

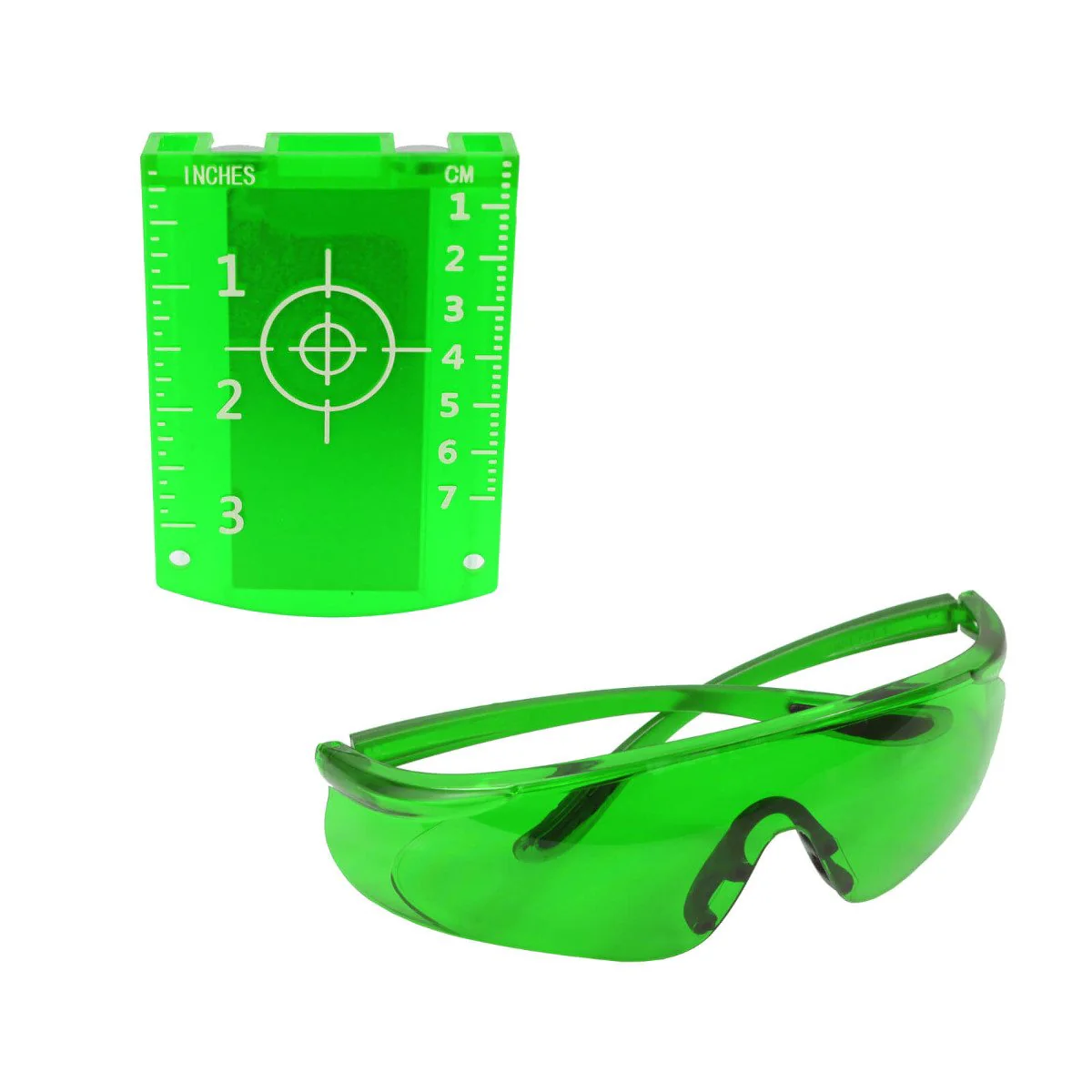

Green Laser Enhancement Glasses

Green Magnetic Target Plate

Surveying Tripod

4m Measuring Staff, type TLS4S

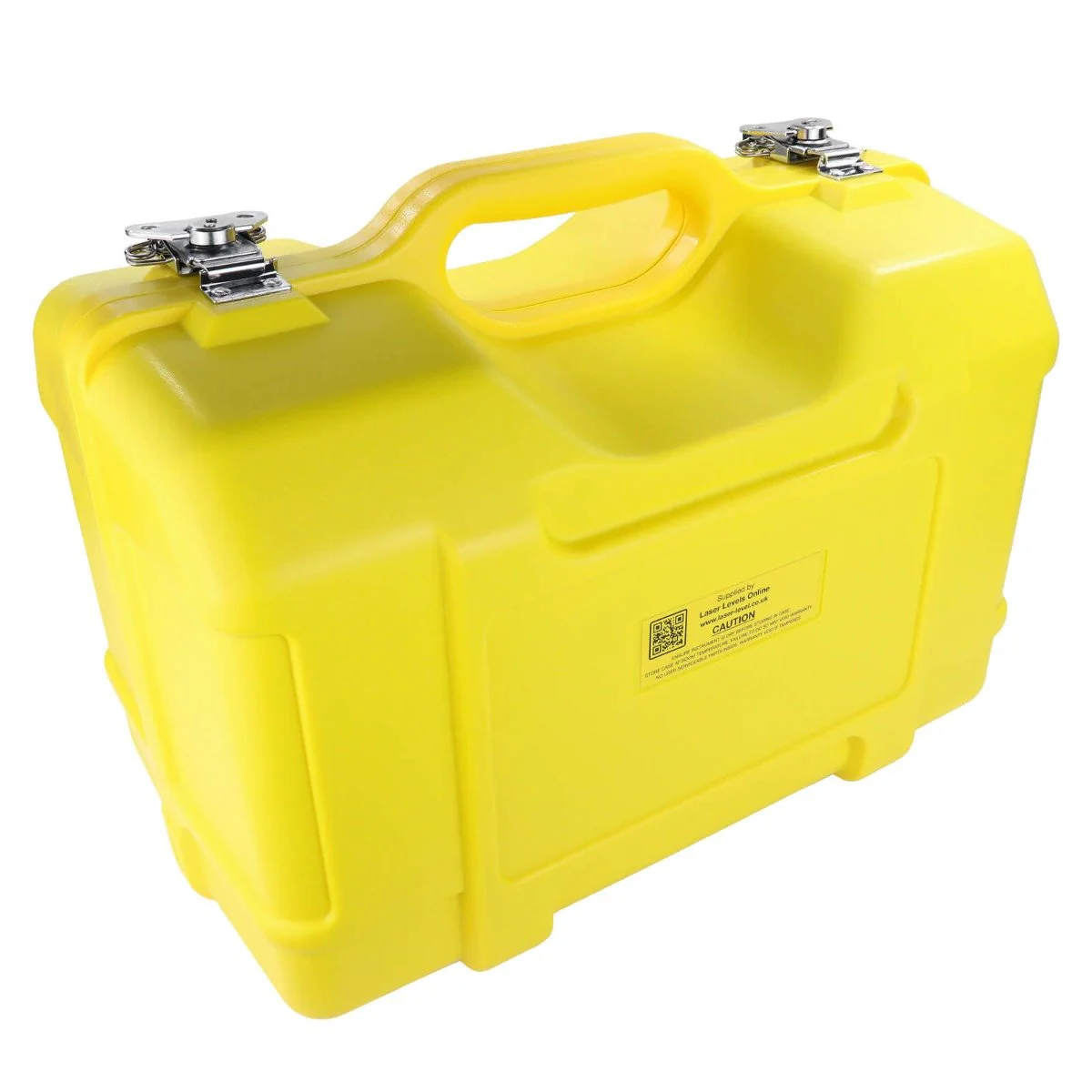

Foam Lined Carry Case

Quick Start Guide

3 Year Automatic Warranty
