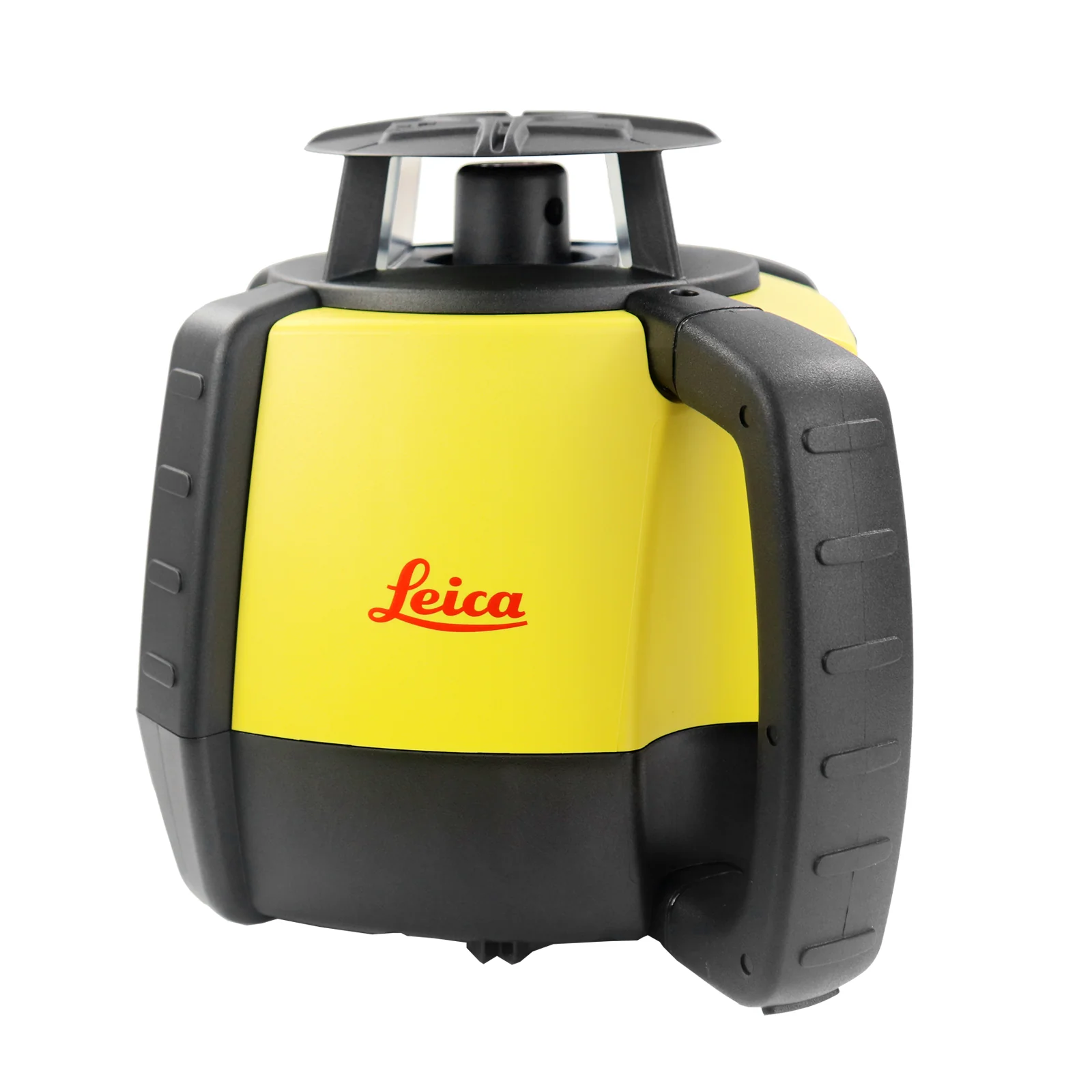

Leica Rugby 620 Premium Kit
The Leica Rugby 620 Premium Rotary Laser Level features a very durable housing that provides superior drop and weather protection. A very high level of dust/water protection to IP67 (Dust tight & protected against submersing in water up to 1m deep without damaging the instrument) makes the Rugby 620 suitable for the most demanding of worksites.
The Rugby 620 fully automatic, horizontal with manual grading, self-levelling capability provides fast, accurate setup; with just one button press. It has a very high accuracy rating of +/-1.5mm @ 30m with a max. working diameter of 1,100m.
The User can set manual grades (slopes) in the X-axis or Y-axis up to 8%, OR both X & Y axis together ie. manual DUAL grading.
The included, alkaline non-rechargeable batteries with cradle, keeps the unit working for 60 hours with no downtime, due to power loss. Or upgrade to the optional powerful Lithium battery pack (40 hours runtime).
The Rugby 620 is matched with Leica’s superior Rod Eye RE160 digital (mm) detector with five sensitivity settings to suit all site conditions.
Features
Operating diameter of 1,100m with supplied RE160 detector
Increases productivity with fast set-ups, fewer mechanical parts, and automatic self-levelling
Maintains performance even in rainy, dusty and other harsh job site and weather conditions
Durable design reduces downtime due to drops and tripod tip-overs
Minimizes power costs, increases reliability with included rechargeable or optional alkaline batteries & cradle.
Specification
Rugby 620 Laser Specifications:
Laser Source: 635 nm (red), Class 1.
Laser Accuracy: ±1.5 mm at 30 m
Laser Operating Range: 1,100m diameter (with RE160 detector)
Self-leveling Range: ±5 degrees
Manual grading in the X-axis or Y-axis up to 8%, OR both together ie. manual DUAL grading
Compensation Method: Electronic self-leveling
Out-of-level Warning: Rotor stops, out-of-level LED flashes
Power Source: 4 x JCB Super Alkaline Industrial Type D (60hrs Runtime)
Battery Life: Alkaline (Non-rechargeable) - 60 hours
Low Battery Status LED: Flashing LED
Rotation Speed: 600 RPM
Tripod Mount (Horizontal only): 5/8” x 11
Operating Temperature: -10 °C to 50 °C
Water Resistant: Yes, IP67
Size: 19L × 24W × 21H cm
Weight: 2.4 kg with alkaline battery pack
Warranty: 5 Years
Detector features

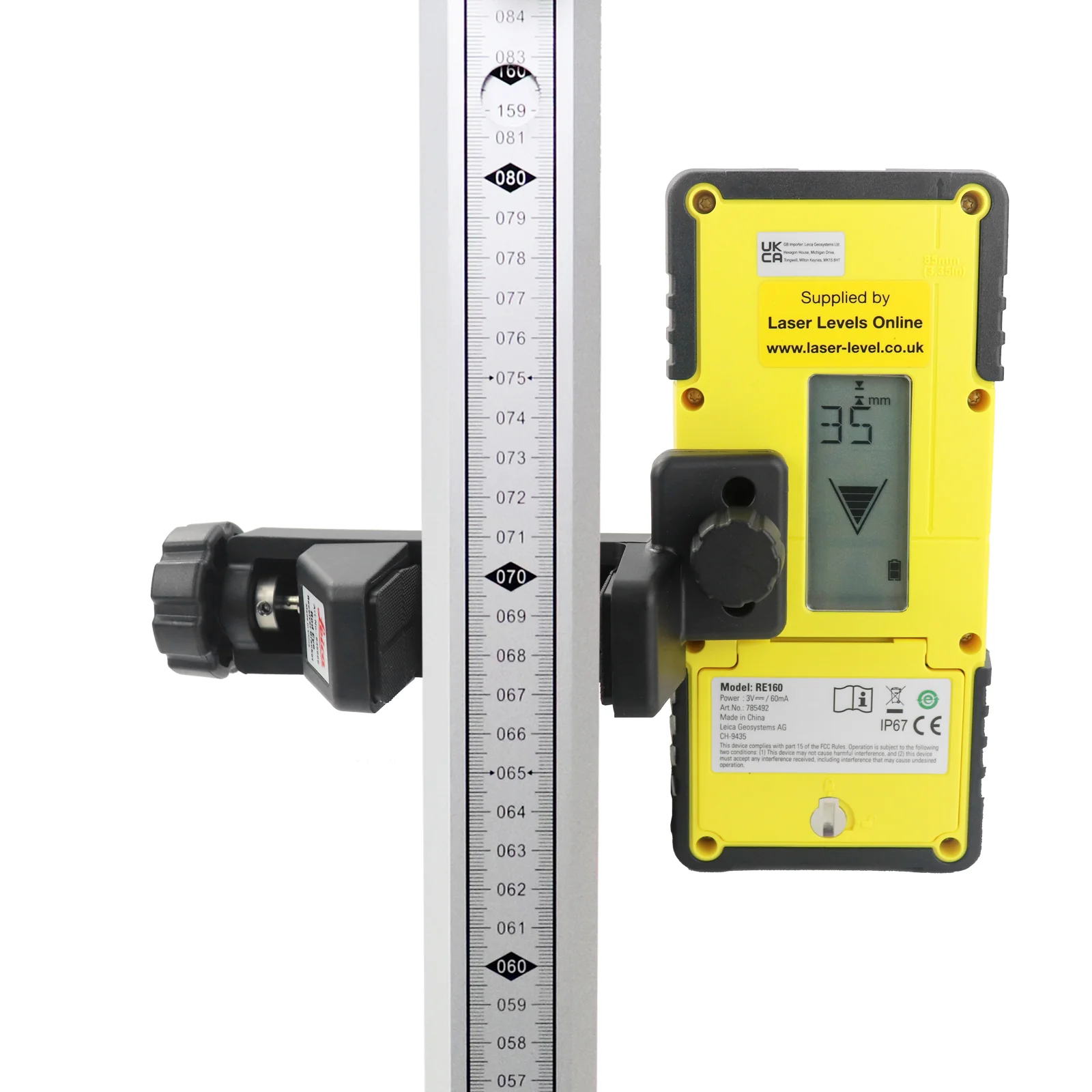

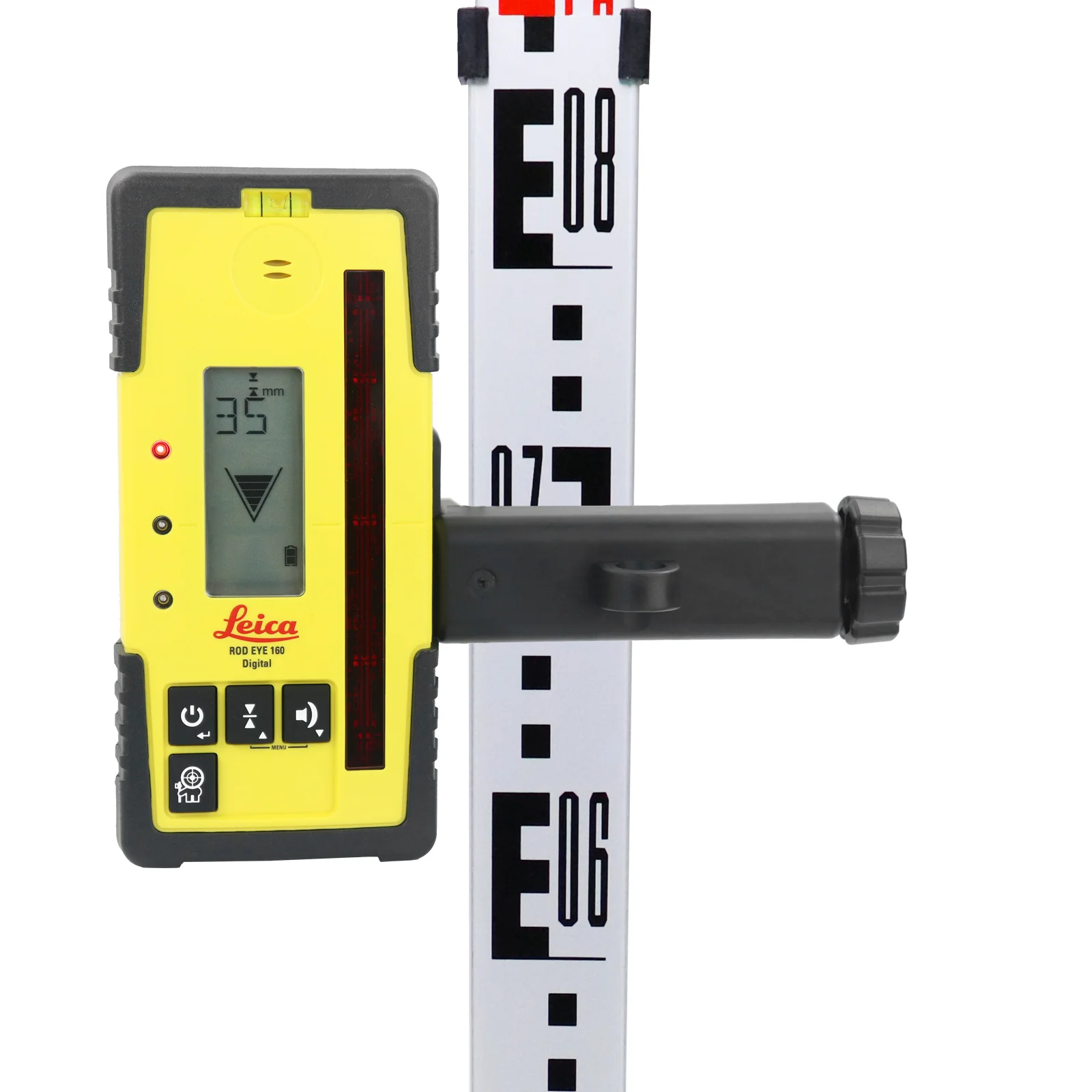

Kit includes Rod Eye RE160 Detector & Bracket:
Dual LCD’s on front and rear are ideal for general outdoor applications
Fine or standard accuracy fits all application needs.
Strong waterproof housing (IP67) protects the unit from dust, moisture and accidental drops
Loud 100 dBA speaker can be heard on the nosiest job site.
Five On-Grade Sensitivities: Very Fine +/-0.5mm, Fine +/-1mm, Medium +/-2mm, Coarse +/-3mm, Very coarse +/-5mm
LCD Channels: 5
Red pick-up window height: 120mm
Numeric readout height: 90mm
Automatic Shut-off: 30 minutes
Dust & Waterproof: IP67
Weight: 0.6kg with bracket
Warranty: 1 Year
Technical specification
Accuracy:
+/- 1.5mm @ 30 metres, max. operating diameter 1,100m (550m either side of the instrument).
An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres. This laser level is 10x more accurate.
Example usage
General horizontal elevation control
Checking and setting elevations
Framework levelling
Levelling forms and footers
Pad placement
General concrete pours
Estimating cut and fills
Excavations
Manufacturers data
Leica Geosystems 5 Year - No Cost - WARRANTY is included
This Rugby 620 Laser Level is covered by a new "5-Year - No Cost" Warranty which covers all defects due to material and workmanship.
Please note: The RE160 Detector, Tripod & Staff are not covered by this Warranty. Please see individual product listing for their respective warranty period.
Also included in the kit
The Leica Rugby 620 Premium Kit also includes the following accessories:
4m Telescopic Levelling Staff (Model: TLS4S)
4m, 5-section, Telescopic Levelling Staff.
Five robust aluminium sections with abrasion proof scale.
Closed length height 970mm, extending to maximum height of 4m.
Automatic locking buttons when extended.
Millimetre scale on back and E-graduations (1cm) markings on front
Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.
Red / Black coded front sections.
Accepts all Laser detector mounting brackets.
Removable, rear-mounted circular Bubble Level.
Carry sleeve.
Height: 0.97m closed length to extended max 4m.
Weight 1.15kg.
Surveying Tripod (Model: S-LAT)
Maximum 1.5m height.
Robust aluminium tripod.
Extending legs with quick-release, toggle clamp adjustment.
Flat top, mounting head.
Head size 130mm
5/8 inch x 11 thread.
Closed length 0.925m
Max. Opened height 1.5m approx.
Weight: 3.4kg
Carry strap
Do you need ShockWatch® adding to your Laser?
The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.
For further details of ShockWatch®, please Click Here.
Need to mount a Detector on Plant equipment?
The Rugby 620 can be used for machine control by using a magnetic Spectra CR700 Detector, which can be purchased as an "upgrade" or as an optional extra.
For further details of the Spectra CR700, please Click Here.

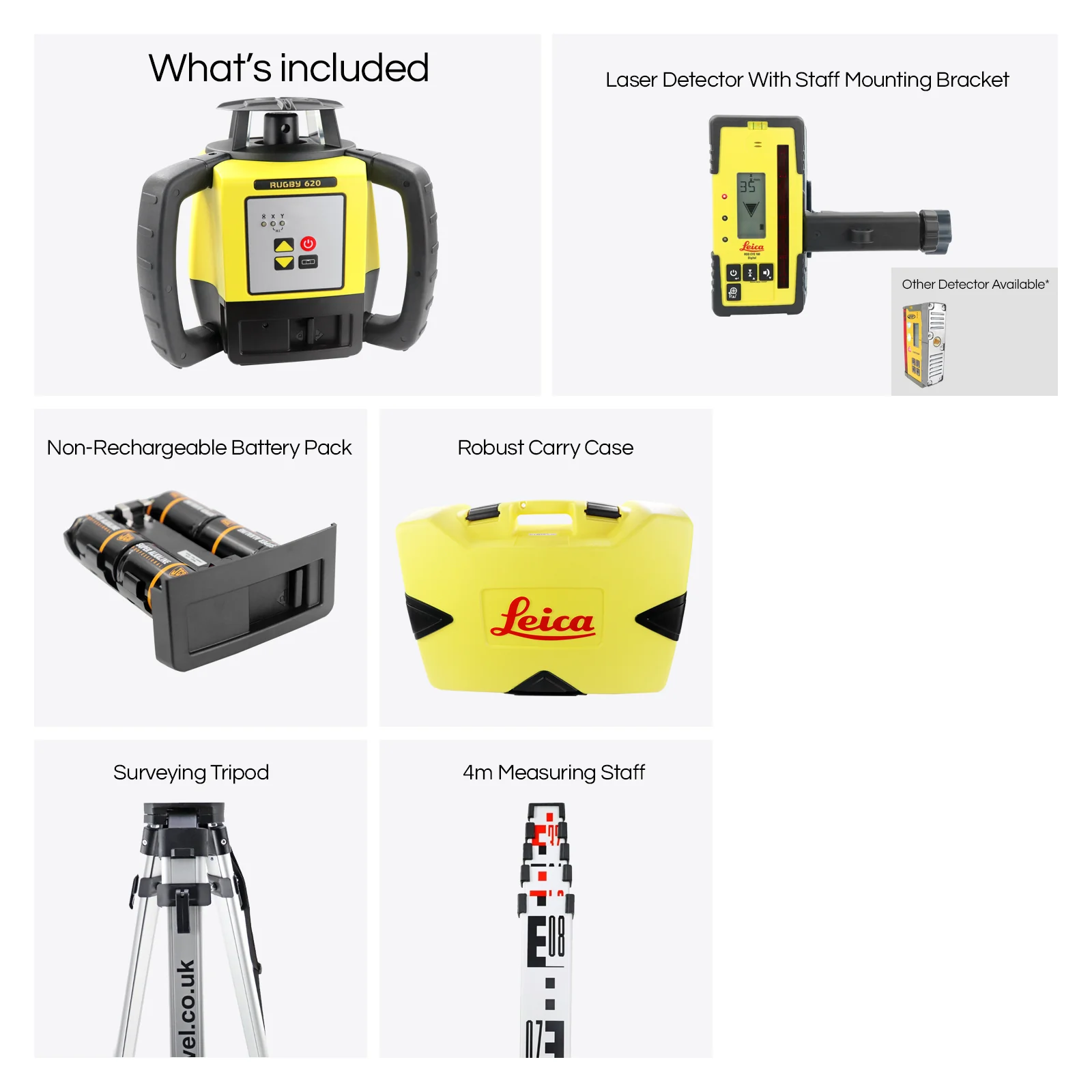

Kit comprises of
Leica Rugby 620 Rotary Laser Level (checked and pre-calibrated)
Rod Eye RE160 Laser Detector with Staff Mounting Bracket & 2 x AA alkaline batteries
(Option to upgrade to magnetic Spectra CR700 detector for machine control)

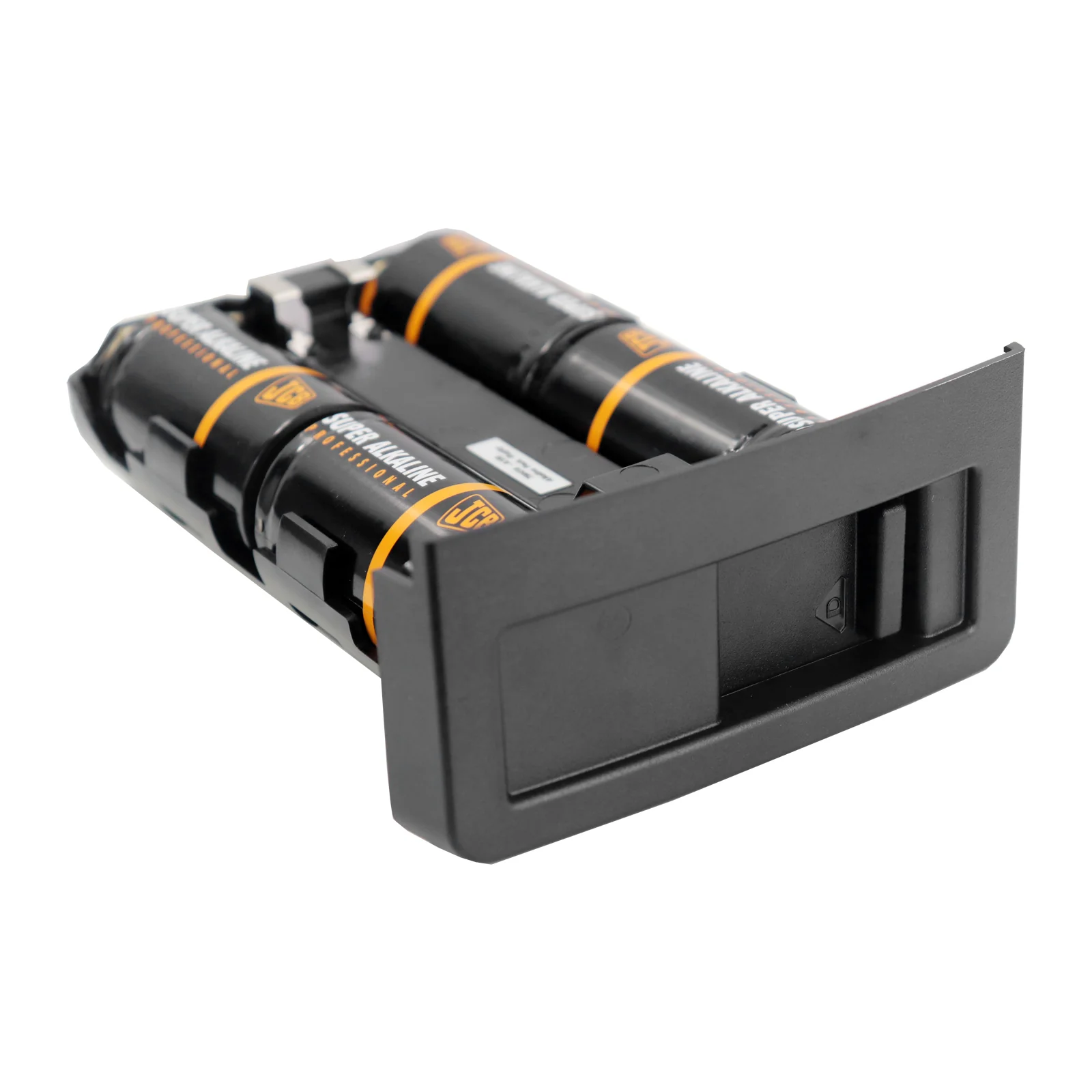

Alkaline Battery pack - 4 x JCB Super Alkaline Industrial Type D (60hrs Runtime)
(Option to upgrade to 5,000mA Li-ion Rechargeable Battery Pack & Mains Charger )
Surveying Tripod, type S-LAT
4m Measuring Staff, type TLS4S
Robust Carry Case
Quick User Guide & Safety Manuals
Full 5 Year Automatic Warranty
Original: $1,222.08
-65%$1,222.08
$427.73
