Topcon RL-200 2S mm/inch True Grade Kit

Also available as an Outlet version

Why not Click Here to view our Laser Levels Online | Outlet. Outlet products are typically cheaper than normal retail versions because some items may have small cosmetic flaws that don’t affect functionality but keep them from being sold at full price.

Product Overview

The Topcon RL-200 2S is a very high accuracy, Dual True Grade laser level with an operating range of up to 1,100m with the included laser detector. Topcon’s revolutionary encoding system provides the highest level of grade repeatability with an accuracy of ±1mm @ 30m, the best in the industry compared with any other brand. Set-up after set-up, time after time, you’re always right on grade!

The RL-200 2S is auto-levelling within ±5 degrees (ie. it will auto level on a surface within 5 degrees of true level) and can achieve dual grades up to ±10% in the X axis & -5% to ±25% in the Y axis.

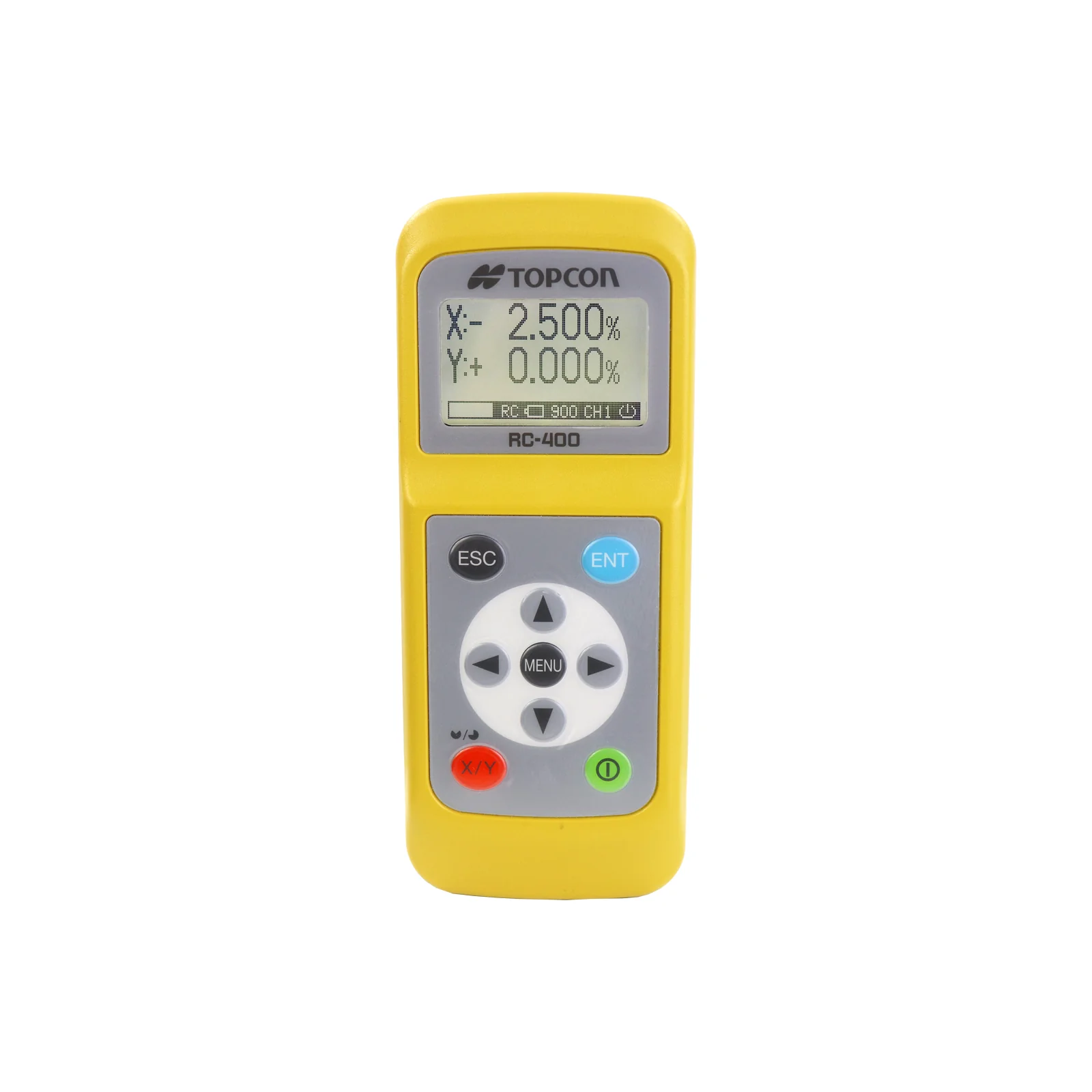

Grade values can be set either on the laser’s keypad or preferably via the included RC-400 wireless remote control with a range of approx. 300m. The RC-400 also gives easy access to the following menu settings: masking mode / rotational speed / sensitivity levels and shock sensor.

For added precision, this laser has an adjustable rotational speed of 300, 600 or 900 rpm. Also, it comes with a clear LCD graphical display that makes it easier to see the set values.

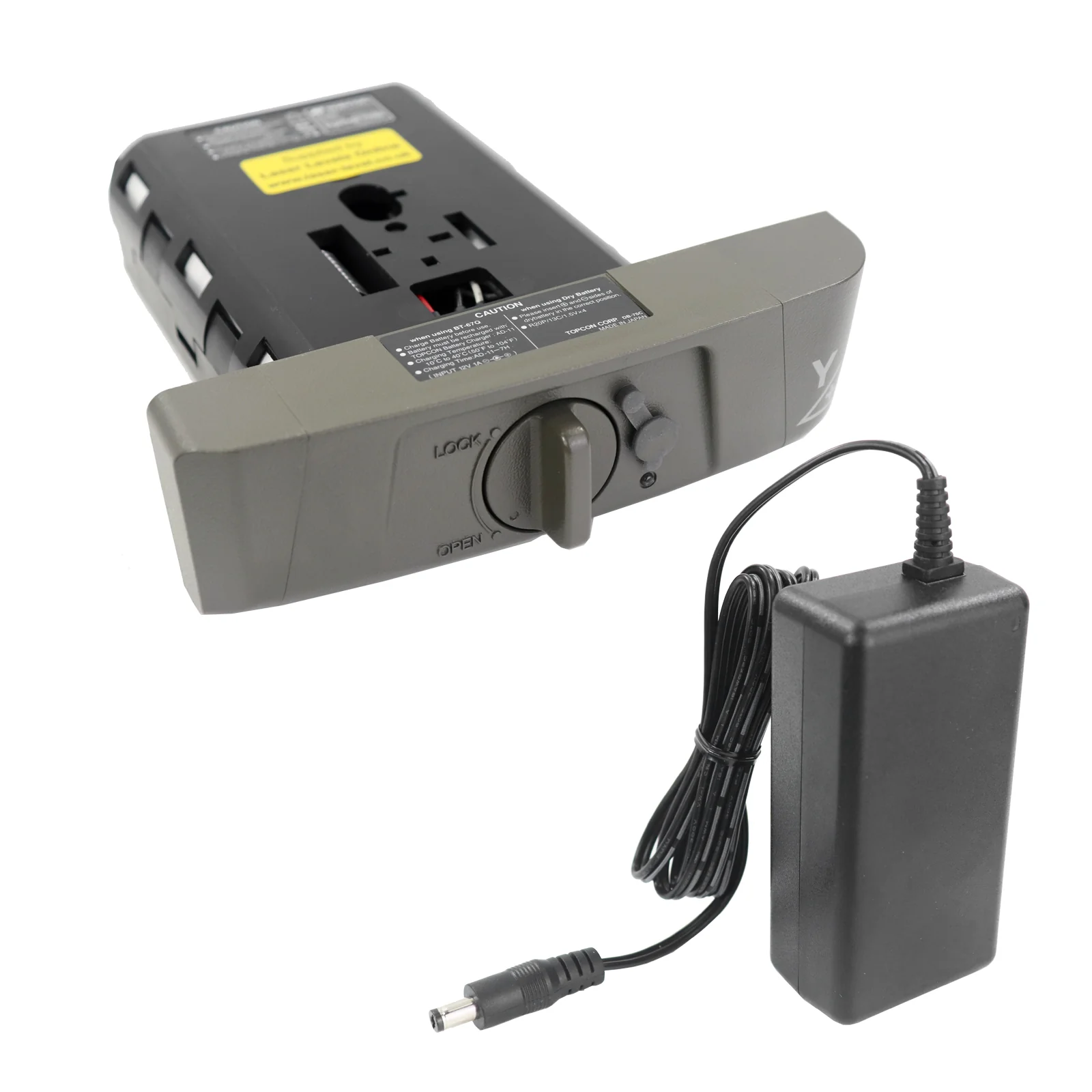

With an IP66 environmental rating, this laser is dust-tight and water jet resistant. Power is supplied via a high capacity 9,000mAh, Ni-MH rechargeable battery pack (BT-67Q) with mains charger, giving a run-time of up to 90 hours. Optionally, 4 x type D alkaline standard batteries will operate for approx. 100 hours.

An automatic 5-Year Warranty is included. Topcon is backing up this reliable & very accurate laser level with one of the best factory Warranties in the industry.

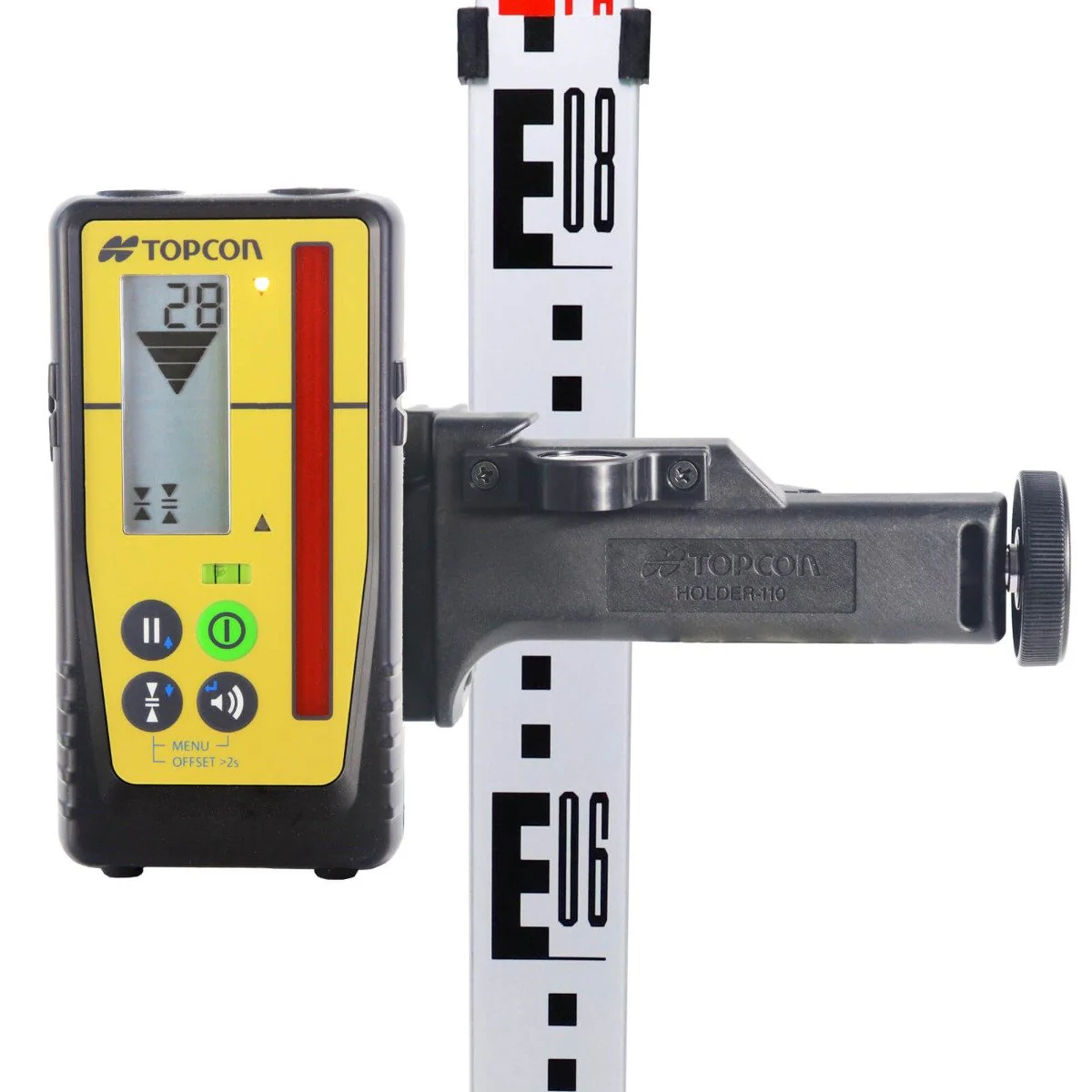

The kit includes the Topcon LS-100D detector with Digital read-out (mm/inch) and staff mounting bracket (holder 110). It displays the mm/inch values to show the elevation or drop clearly on the LCD eg. 20mm - 8mm - 5mm - 1mm – Set LEVEL etc.

The RL-200 2S is perfect for general grade setting, drainage work, land surveying, construction layout and many other outdoor applications.

Specification

RL-200 2S Laser Specifications:

Light source: Laser diode (visible red, 400-700nm) class 2, 1mW

Laser accuracy: ±1.0mm at 30m

Range up to 1,100m (diameter) with LS-100D detector

Self-levelling range: Horizontal only ±5 degrees. (ie. it will auto level on a surface within 5 degrees of true level)

Grade setting range X axis: ±10%

Grade setting range Y axis: -5% to +25%

Rotational speeds: 300, 600 & 900rpm (adjustable)

Power source: Rechargeable 9,000mAh Ni-MH battery pack, type BT-67Q or Optional standard alkaline batteries (4 x type D).

Working duration at 20°C: Rechargeable battery pack, type BT-67Q: 90 hours or Optional standard alkaline batteries (4x type D): 100 hours

Charging time at 20°C for BT-67Q: 13 hours (Charger AD-11E)

Dust and water resistance: IP66 (IEC 60529:2001)

Operating temperature range: -20 to 50°C

Storage temperature range: -30 to 60°C

Size: 174(L) X 218(W) X 253(H) mm

Weight: approx. 3.7kg (with rechargeable battery pack)

Tripod screw: 5/8” x 11 threads for surveying instruments

Detector features

Kit includes LS-100D Detector & Bracket:

Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.

It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9 channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three coloured LEDs and a strong magnet mount are embedded for vertical operation, ideal for steel erection or operator-grade checking while excavating.

To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI alert) or when the laser battery is low.

Specification:

Working Range (diameter): 1,100m

Vertical Detecting Range: 90 mm (3.5 in.); (-30 mm to +60 mm) (-1.1 into +2.3 in.)

LCD Digital Readout Range: 70 mm (2.7 in.); (-20 mm to +50 mm) (-0.7 in. to +1.9 in.)

Strobe Light Suppression: Yes

Unit: mm / cm/inch / fractional inch

On-Grade Resolution:

±0.5 mm (±0.02 in.):

±1.0 mm (±0.05 in.)

±2.0 mm (±0.10 in.)

±5.0 mm (±0.20 in.)

±10.0 mm (±0.50 in.)

LCD Grade Indicators 9 Channels

LED Grade Indicators: Orange, Green, Red (On/Off selectable)

Display LCD on each side

Buzzer: Loud/Low/Off selectable

Operating Time: Up to 45 hours with alkaline batteries

Battery Level Indicator: LCD Icon

Auto Shut-off Approx: 30 minutes

Dust/Water Rating: IP67 (IEC 60529)

LS-100D Detector includes:

LS-100D instrument

AA Alkaline batteries x 1

Mounting bracket

Instruction & safety manual

Technical specification

Accuracy:

+/- 1.0mm @ 30 metres, max. operating diameter 1,100m (550m either side of the instrument).

An accuracy of +/- 1.0mm @ 30 metres is equivalent to 0.033 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Example usage

Cut and fills

General long range Grading

Foundations, forms and footings

Excavations

Slopes on grade

Screeding concrete

Driveways and ramps

Machine control

Also included in the kit

The Topcon RL-200 2S Grading Kit also includes the following accessories:

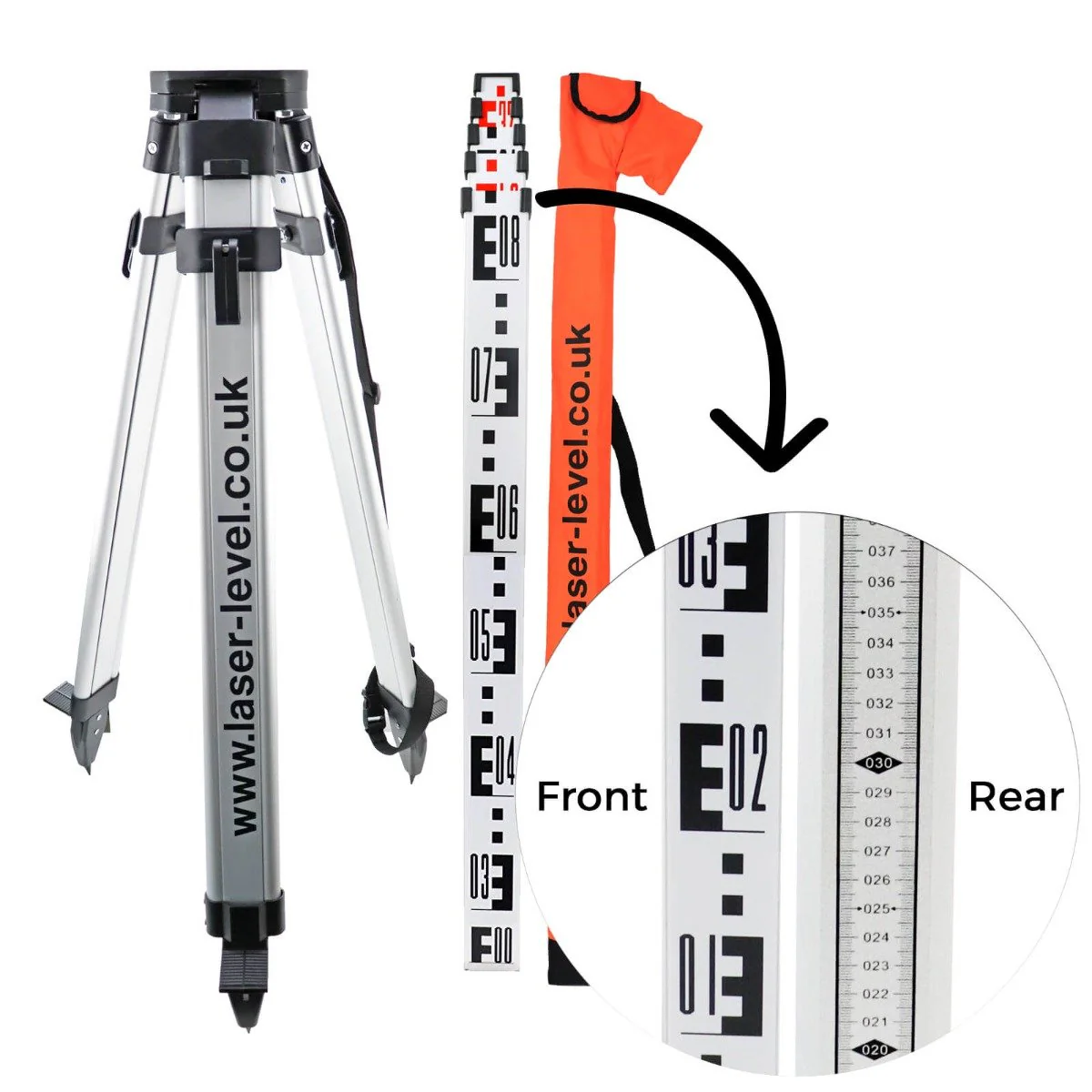

4m Telescopic Levelling Staff (Model: TLS4S)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

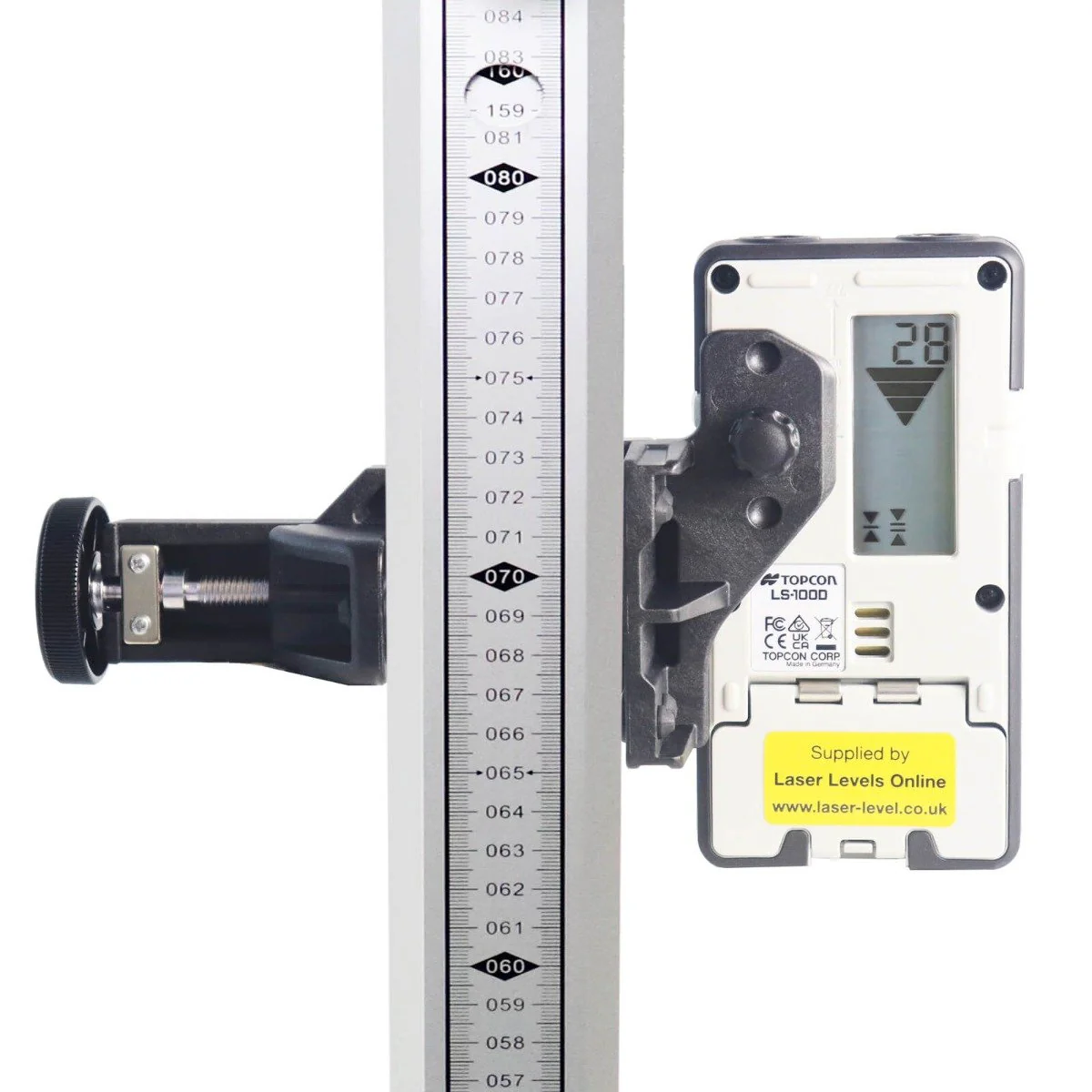

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Do you need ShockWatch® adding to your Laser?

The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.

For further details of ShockWatch®, please Click Here.

Need to mount a Detector on Plant equipment?

The Topcon RL-200 2S can be used for machine control by using a magnetic CR700 Detector, which can be purchased as an "upgrade" or as an optional extra.

For further details of the Spectra CR700, please Click Here.

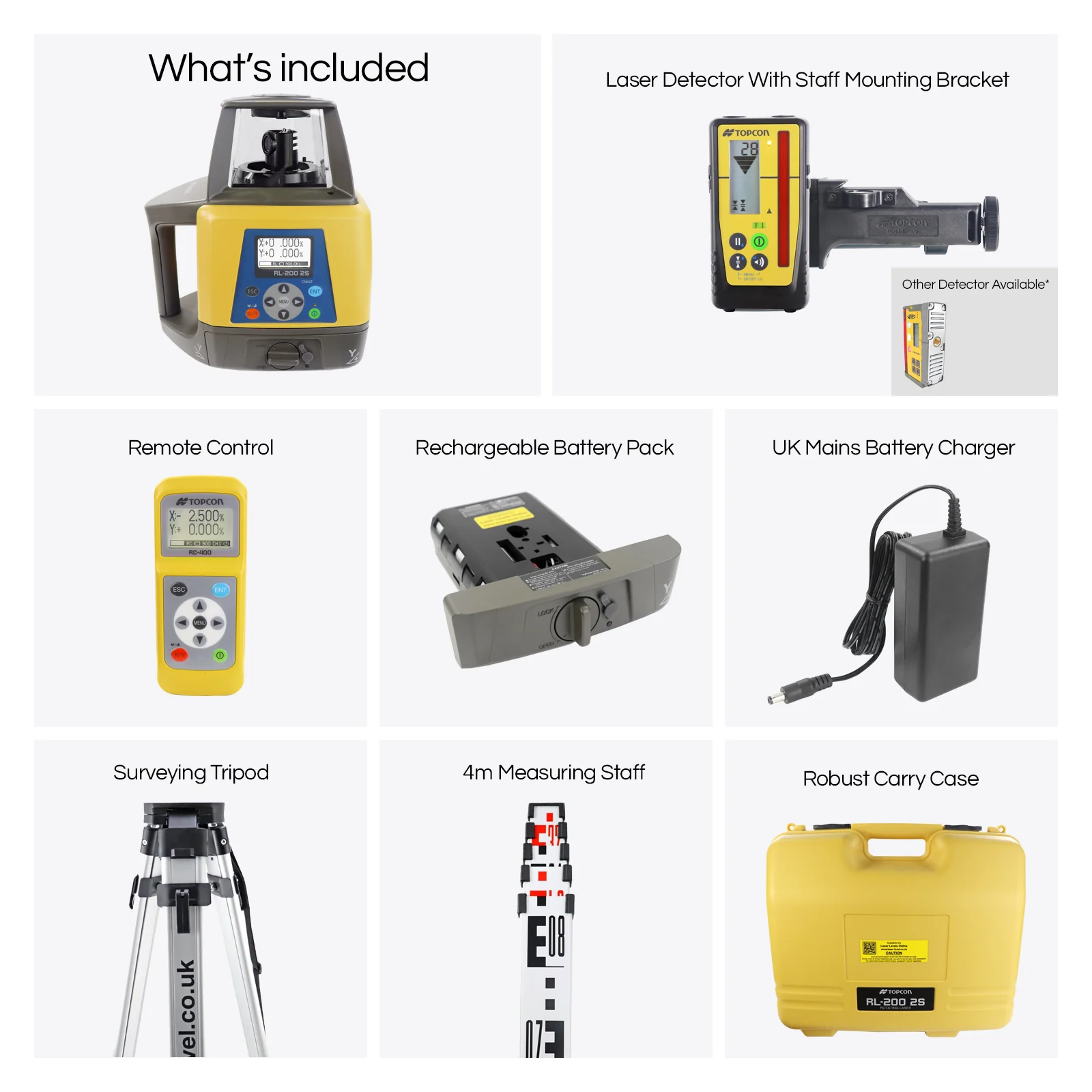

Kit comprises of

Topcon RL-200 2S TRUE GRADE Rotary Laser Level (checked and pre-calibrated)

Topcon LS-100D Laser Detector with Staff Mounting Bracket (Holder 110) & batteries

Option to upgrade to CR700 Magnetic Laser Detector

Radio Remote Control, RC-400

Rechargeable Battery Pack (BT-67Q) & holder, DB-75C

UK Mains Battery Charger, AD-11E

Surveying Tripod, type S-LAT

4m Measuring Staff, Type TLS4S

Robust Carry Case

Quick User Guide & Safety Manuals

5 Year Automatic Warranty
