Fukuda RLR100plus Rotary Detector
Fukuda RLR100plus Rotary Detector
Fukuda Lasers have listened to feedback from customers and have developed a new detector, model RLR100plus with added features & improvements for the Professional Tradesperson, which is easy-to-use and very accurate. It is ideal for use with most brands of rotating, RED beam laser level.
This Detector is a highly versatile, well-engineered laser receiver for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors. Strong magnets give added convenience when installing steels and metal structures.

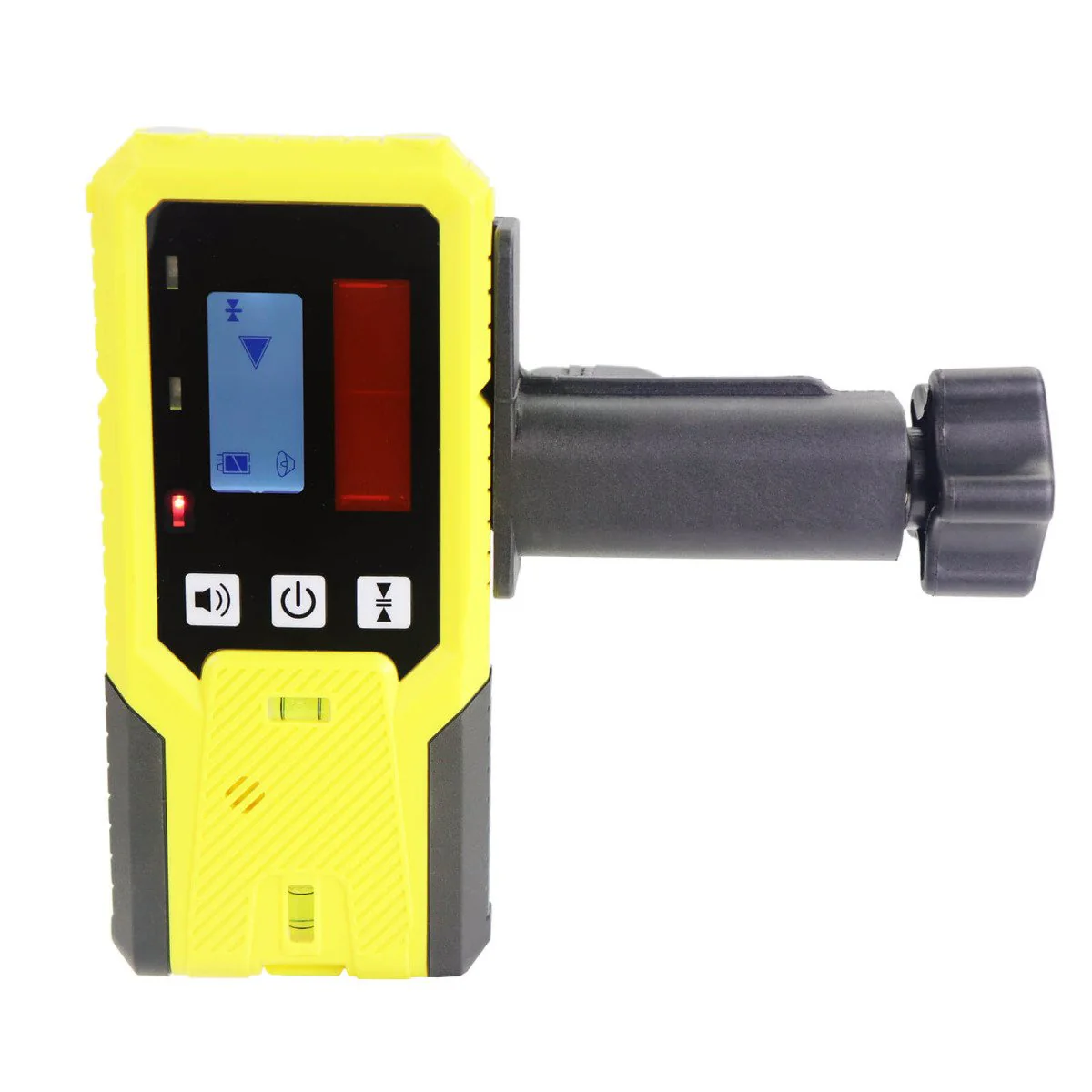

A responsive 43mm long red pick-up window allows quick detection of the laser beam. Readings are shown in three ways: via a front LCD, coloured LED indication and by audible sound, selectable loud/normal or Off. It is specifically compatible with the following Fukuda Red beam laser models:
FRE-102AR, FRE-201, FRE-203XR, FRE-203XT, FRE-205, FRE-207, FRE-208, FRE-211 and FRE-301R; designed to extend the range of these lasers to 500m diameter.
It also suits ALL BRANDS & models of visible red beam Rotary lasers spinning at 600+ rpm.
(Note: This Detector is NOT suitable for green beam Rotarys or any Cross Line laser)
Features
43mm reception window picks up the beam quickly and makes it easy to stay in range. LCD screen on front face.
Simultaneous elevation LED's signal in low light levels and over longer distances for easier reading in poor light conditions. A switchable back-light is included.
Deadband sensitivity settings - two in all, allows adaptation to meet all your job site requirements.
Dust and weatherproof housing to IP55.
Top mounted magnet & bubble levels.
Continuous usage, 40 hours battery life with auto switch off facility.
Specification
Detecting Sensitivity: fine & course settings +/- 1.5mm & +/-2.5mm
Display: Front LCD, back-lit
Audible pitch warning. (selectable On, loud/normal & Off)
Power supply: 4 x type AAA alkaline batteries
Operating time: approx 40 hours continuous, at 20 deg C.
Low battery warning via LCD.
Power Conservation: 10 minutes auto cut-off.
Working temperature: -10 to +45 deg C.
Dimensions: 20 x 75 x 165mm
Weight: 210 grams with batteries (no bracket)
Technical specification
Suits the following FUKUDA family of laser levels:
FRE-202 red beam
FRE-205 red beam
FRE-211 red beam
FRE-301 red beam
FRE-203X red beam
FRE-203XR red beam
FRE-203XT red beam
Example Usage
Setting and checking jobsite elevation and depth for -
Cut and fills
General grading
Foundations
Forms and footings
Excavations
Comprises of
Fukuda RLR100plus Detector
Set of 4 x type AAA alkaline batteries

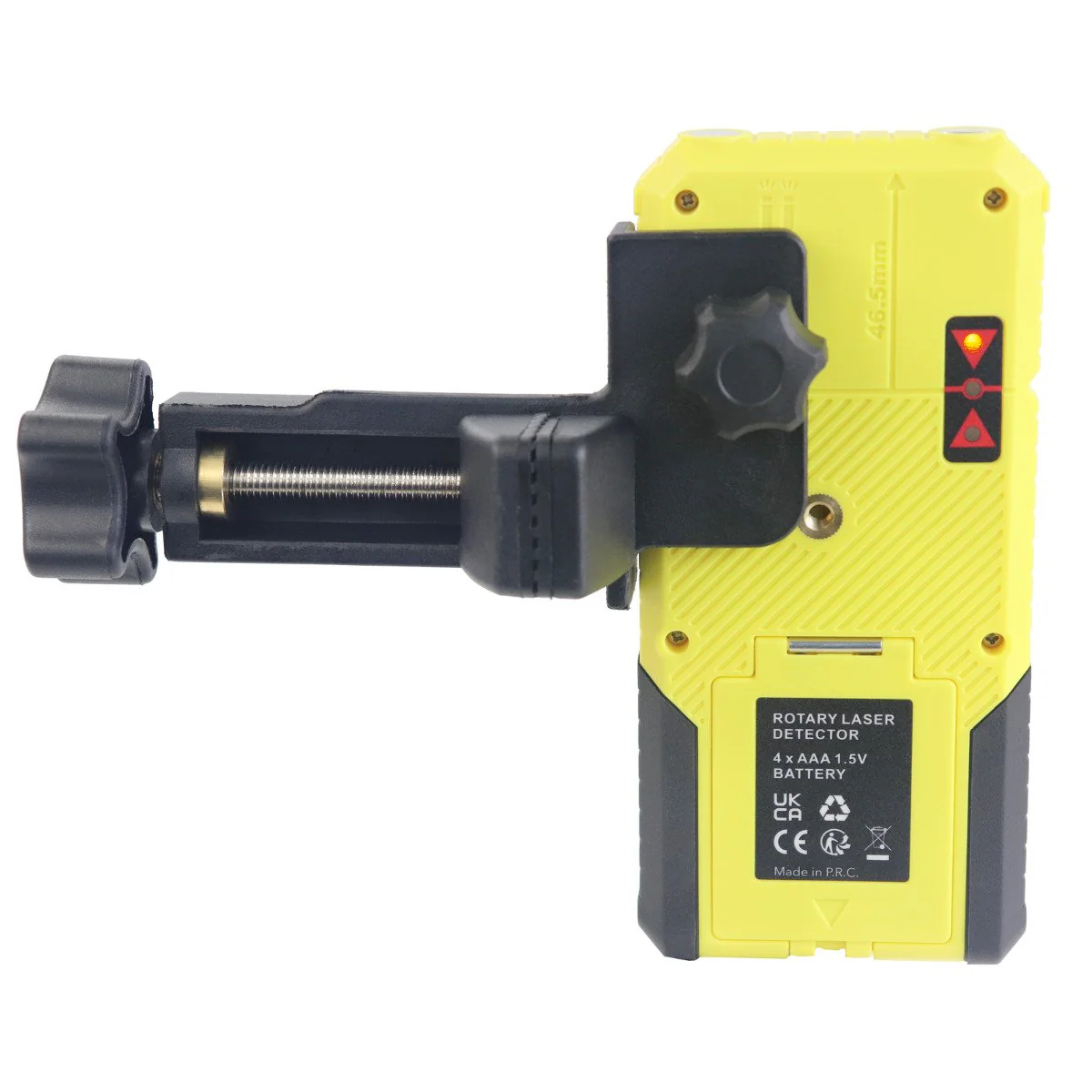

FMB-02 Staff Mounting Bracket
Fukuda 1 Year Warranty
