Spectra HL760U Detector

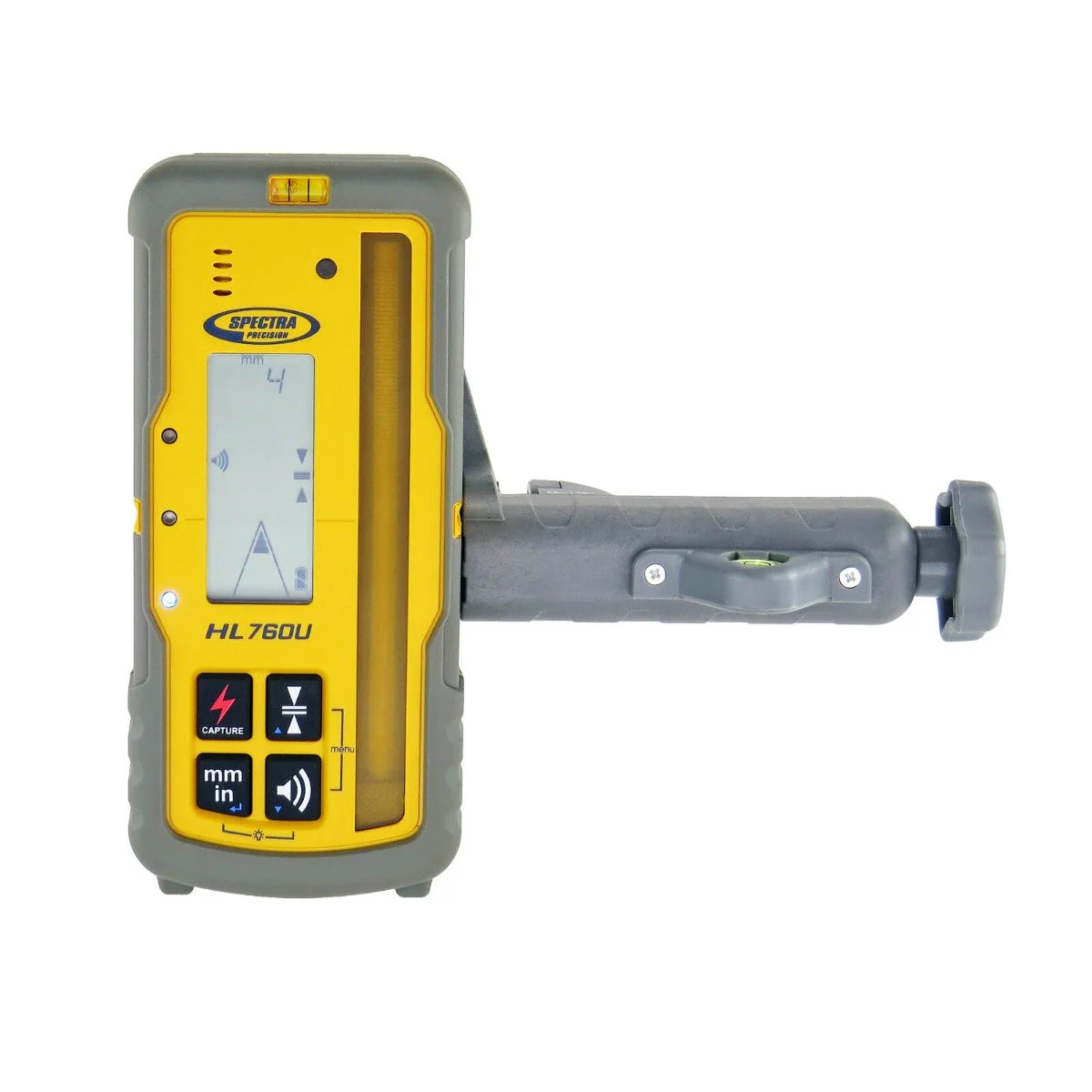

Spectra Precision HL760U Rotary Detector With "Mm / Inch" Display
The Spectra Precision® HL760U is a highly versatile laser detector for both basic and advanced levelling and aligning applications, designed for general, concrete and site preparation contractors.
The HL760U is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating red, green or invisible beam laser level.
It features a digital readout of elevation that provides a numeric display of +/-50mm to 0.5mm resolution. The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.
Selectable units of measurement can be displayed to meet your specific application - mm, cm, ft, in or fractional inches.
A 127mm long pick-up window, more than double the industry standard, allows quick acquisition of the laser beam.
An anti-strobe sensor prevents false readings from any adjacent site strobe lights.
Radio Communication:
The HL760U can communicate with an LL400HV, HV302 (red/green beam), GL412N and GL422N in automatic Grade Match and PlaneLok applications. nb. A radio remote control is also required.
"Fingerprinting" - this is a NEW function which links the HL760U with a particular Spectra Laser. Once it is paired with the laser level, the detector has the ability to filter out all other lasers that strike its pick-up window and ONLY accept the laser that it is paired with.
A very useful feature on busy worksites.
This detector is designed to survive tough construction site conditions; it is totally waterproof (IP67) and can withstand a drop of 3 metres (10 feet) onto concrete.
Features
Fingerprint function filters out other lasers.
Reduces rework by allowing remote monitoring.
Increases reliability, accuracy and durability.
No need to go "on-grade" to measure: saves considerable setting-out time.
Digital readout of elevation - not only will high or low arrows be displayed, but the exact distance from grade will be numerically displayed, which eliminates the need to get "on-grade" to make measurements.
Large 127mm reception height acquires the beam quickly and makes it easy to stay in the beam. The anti-strobe sensor stops construction strobe lights from setting off the detector and makes it easier to identify true laser beam signals.
Simultaneous elevation LED's signal in low light levels and over a longer range for easier reading in poor light conditions.
A new CAPTURE function remotely captures and retains a measurement, when the display is difficult to see.
Multiple deadband sensitivity settings, five in all, allows adaptation to meet all your job site requirements.
Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.

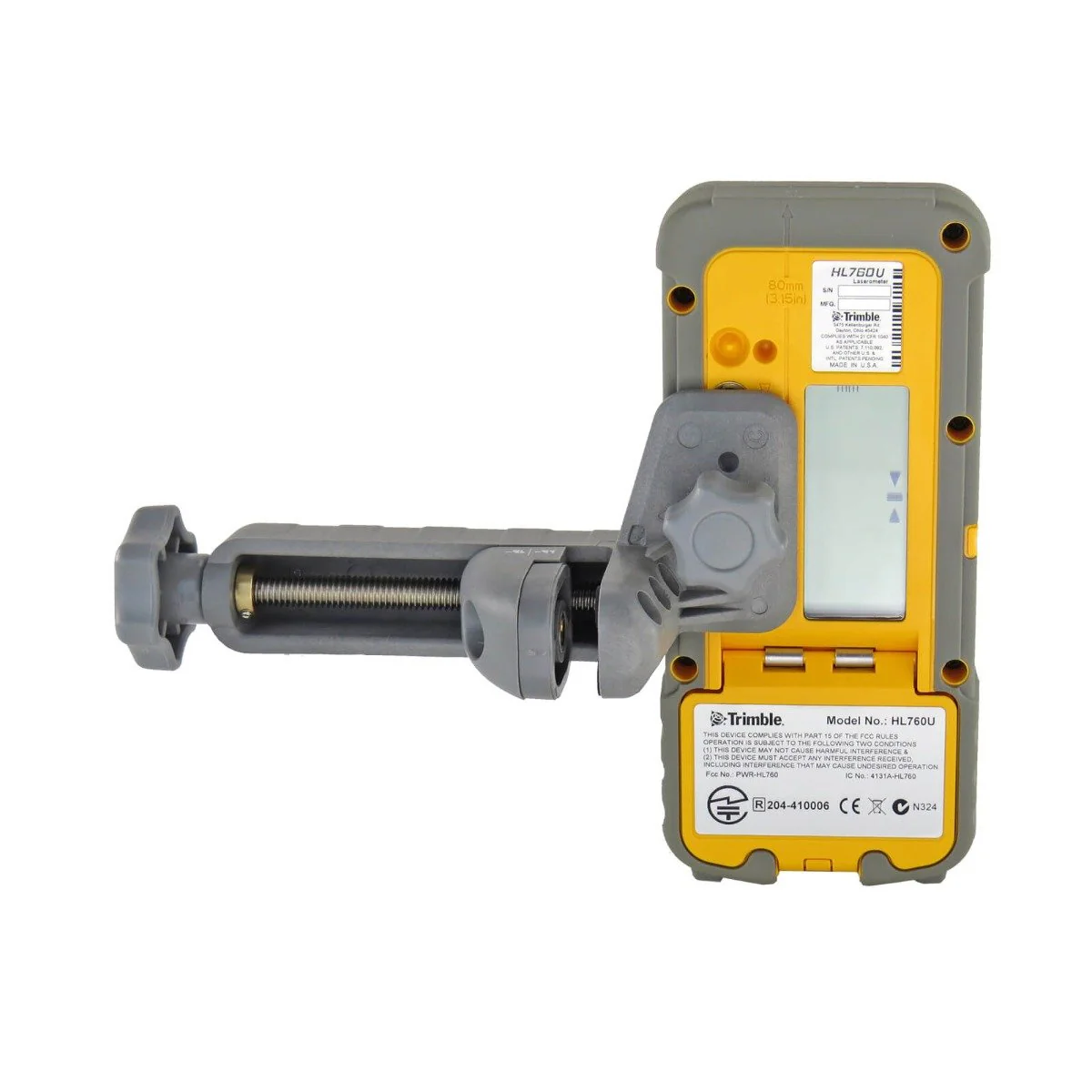

Two clamp positions for cut/fill or excavation. Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications.
Example usage
Remote grade checking with cable free Remote Display.
Wireless monitoring of foundations and steel erections.
Risk free monitoring of tilt up wall position.
Setting and checking jobsite elevation and depth for:
Cut and fills
General grading
Foundations, forms and footings
Excavations

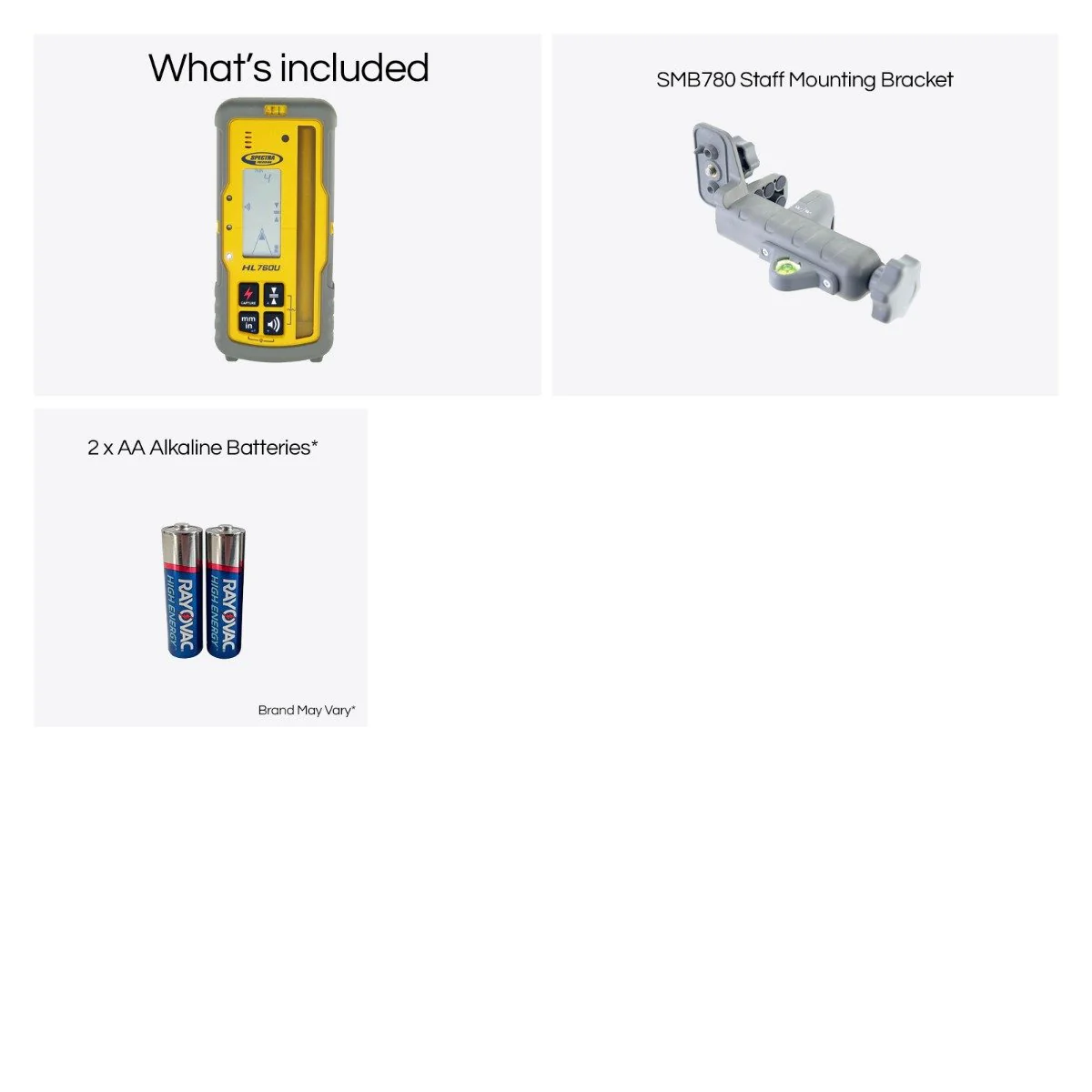

Comprises of
Spectra HL760U Detector
2 x AA Alkaline Batteries
Spectra SMB780 Staff Mounting Bracket With Bubble Level
Instruction & Safety Manual
Warranty: 3 Year
