Kit Overview

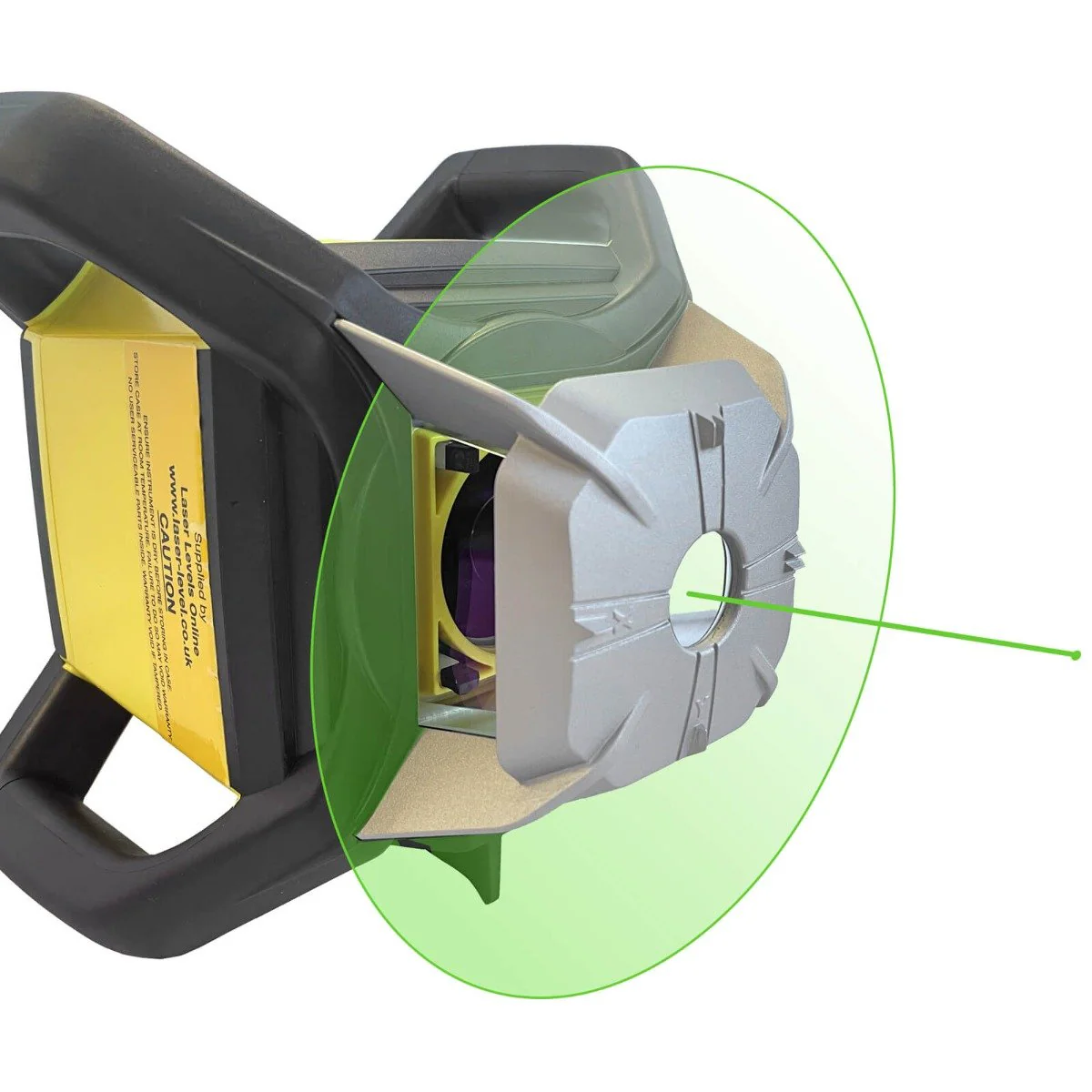

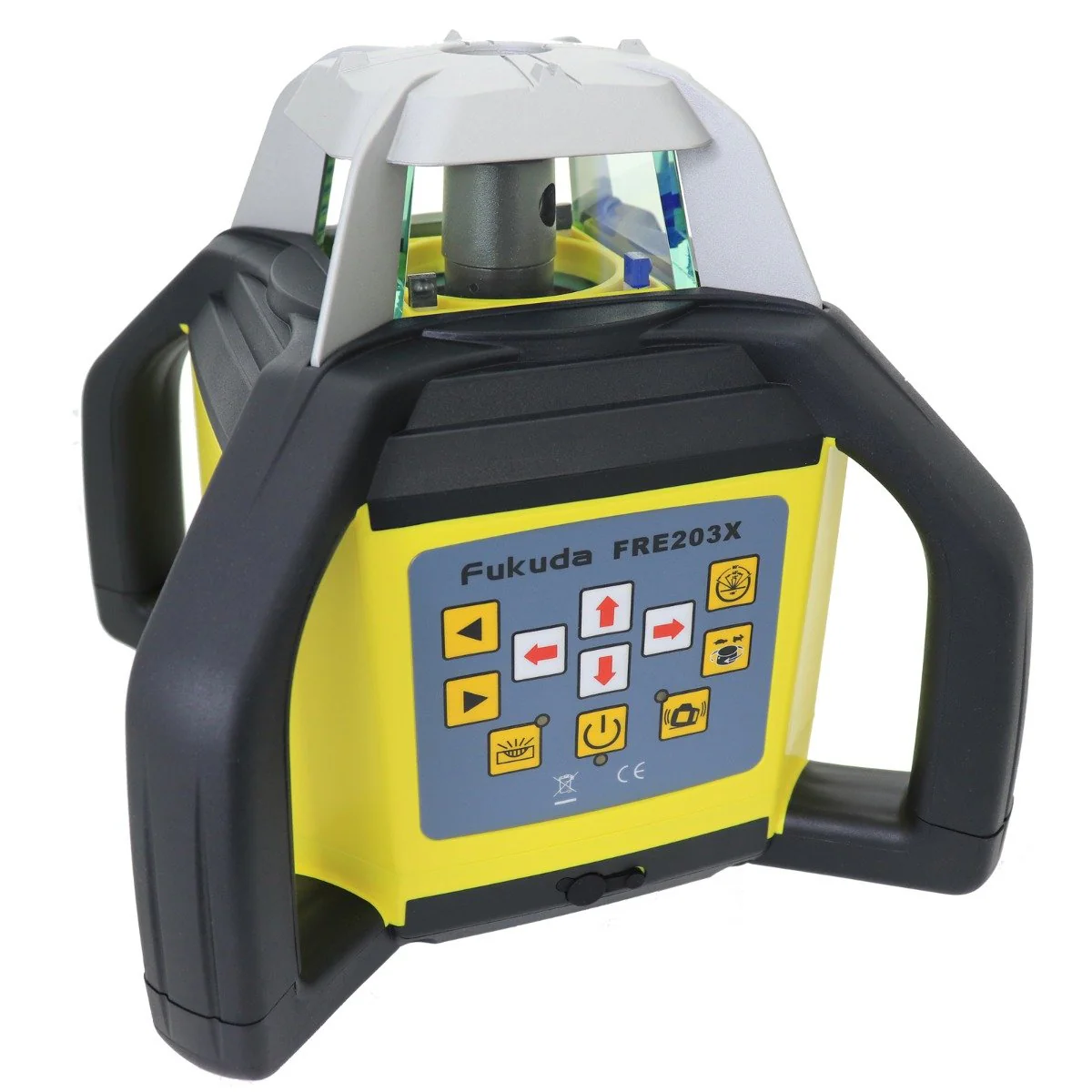

The Fukuda FRE-203XG is an accurate, very bright GREEN beam laser level which is well featured & competitively priced. It replaces the extremely reliable Fukuda FRE-301G, to which it shares many of its internal components. It builds upon this foundation to incorporate many new features and improvements. This is currently the only model in the Fukuda range which is extremely robust, having a drop-test specification of 1 metre onto concrete. The top glass "lighthouse" is protected by a metal die-cast cover whilst a robust roll cage adds increased durability.

The FRE-203XG quickly auto levels to set horizontals, verticals and 90-degree site squaring. An invaluable feature.

In addition, this laser can be switched to Manual mode where the spinning beam can set a grade (fall) in the X-axis, Y-axis or both together (dual grade).

You can only grade match with this system and not key in a value, however, it will set up to a 1:11.1 (9%) grade.

Features

For Indoor & Outdoor use with a 532nm, class IIIA green laser

Sealed waterproof construction (IP66)

Self-levelling both horizontally & vertically

Up and Down dot for setting Plumb & groundworks squaring

(Up dot - Green, Down dot - Red)

Accurate 3 axis electronic sensor

One metre drop test specification onto concrete

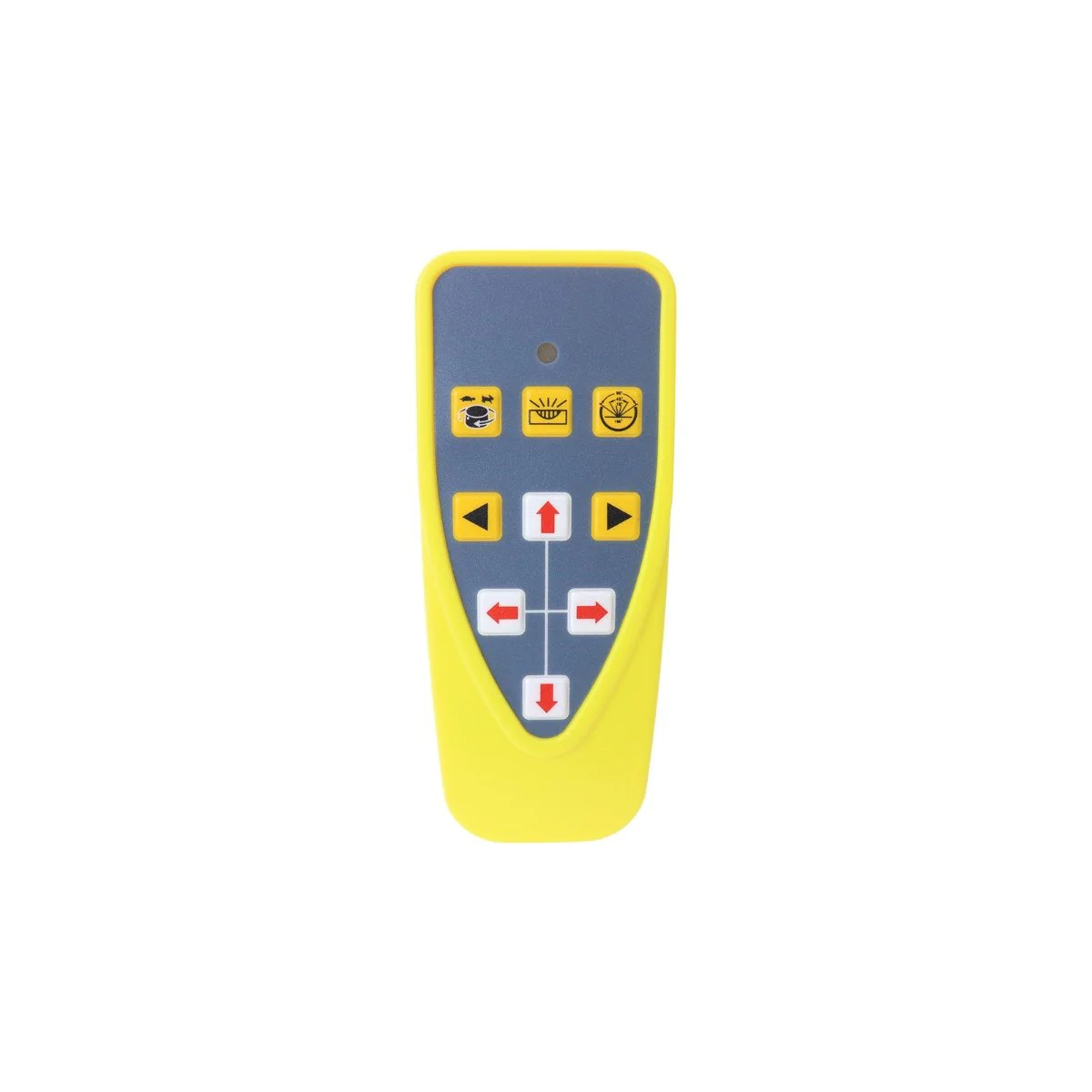

IR control via handheld Remote

Anti-Drift system (Bump sensor)

Dual Grade & SCAN facility

Auto shut-off - if instrument goes outside of its levelling range

Low battery indication

Rechargeable battery system

Spare alkaline battery pack

You have the facility to totally stop or move the green dot slowly in either direction using the remote control. The rotational speed is adjustable in 4 increments up to max. of 600 rpm.

For Indoor use, the SCAN facility comes into its own. This enables the User to stop the dot, then make it oscillate as a short intense green line in one area of the room only. Left/right keys on the remote control moves this laser line to the exact area of working. A really useful feature.



DUAL Axis Grading

You can keep XX axis auto level, whilst setting a Grade (tilt angle) on the YY axis. This is helpful for setting falls of drainage, car-parks & access ways. Or you can set grades in both axis together (ie. DUAL Grade facility).

Additionally, a perfectly plumb laser dot is generated above & below the instrument via the prism system. With the instrument set on its side to spin vertically, these dots can be used to set 90 degree right angles for groundworks site Squaring etc.

Specification

Horizontal accuracy: +/- 2.8mm over 30 metres (+/-20 arc seconds)

Vertical accuracy: +/- 2.8mm over 30 metres (+/20 arc seconds)

Auto (self) levelling range: +/-5 degree (instrument will auto level on a surface within 5 degrees of true level)

Measuring range: 500 metres diameter (using the supplied laser detector)

Drop specification test: 1m onto concrete

Rotation speed: 0, 60, 300 & 600rpm

Dual Grade range in both X & Y axis: +/-9% (1 in 11.1)

Laser Output: 532nm, Class 3A visible green laser diode

Laser plumbing: Accuracy +/-1mm / 1.5m

Remote Control range: 20m by infared.

Power supply: Battery Pack containing 4 x 1.2 Volt rechargeable "C" type batteries & an alkaline battery spare pack

Continuous operating: 50hrs approx.

Working Temperature: -20 to +50 deg C

Waterproof protection: IP66

Instrument Dimensions: 215(L) x 215(W) x 210H (mm)

Instrument weight: 2.5kg (with batteries)

Robust & foam lined, carry case: 460 x 360 x 255(H) mm

Included in the kit

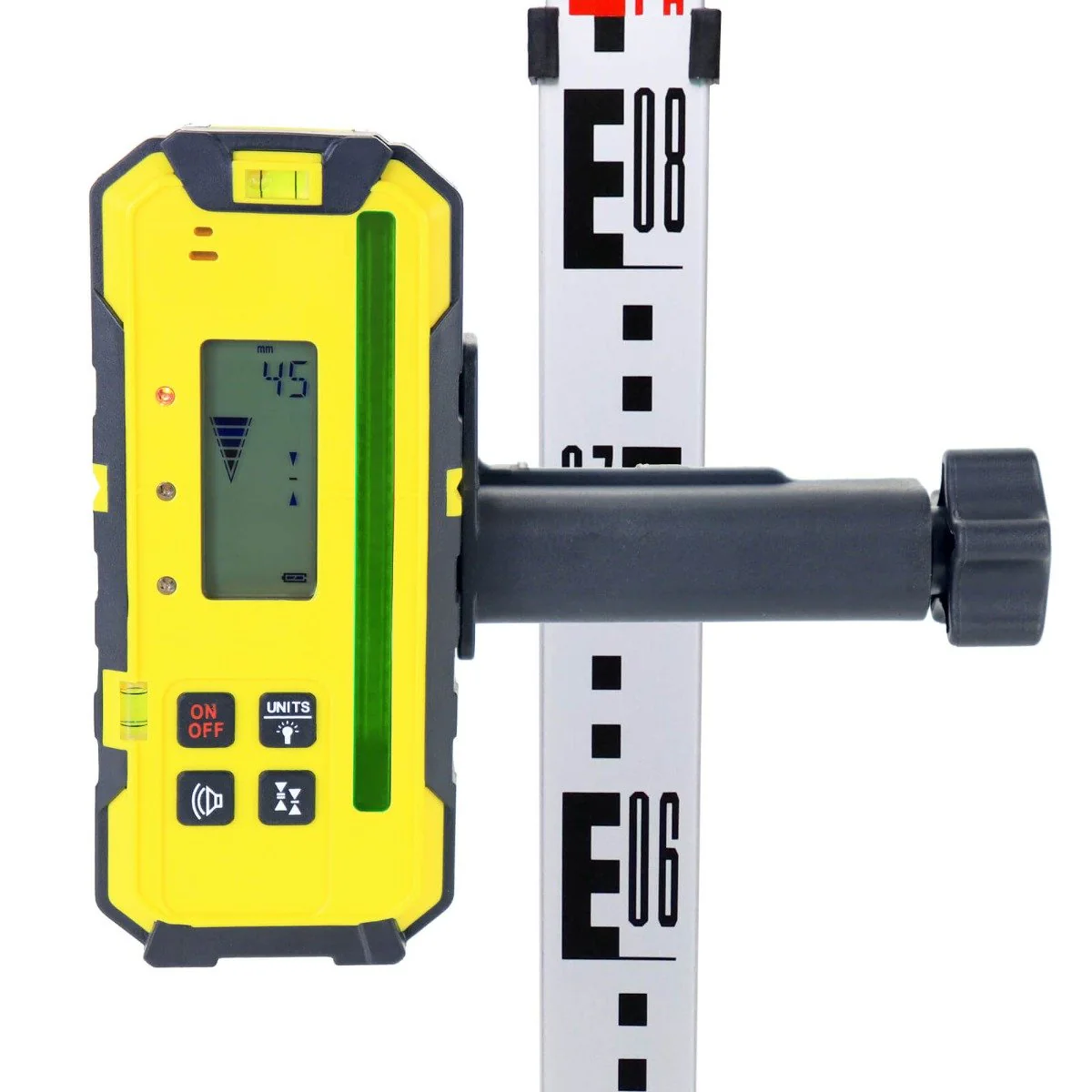

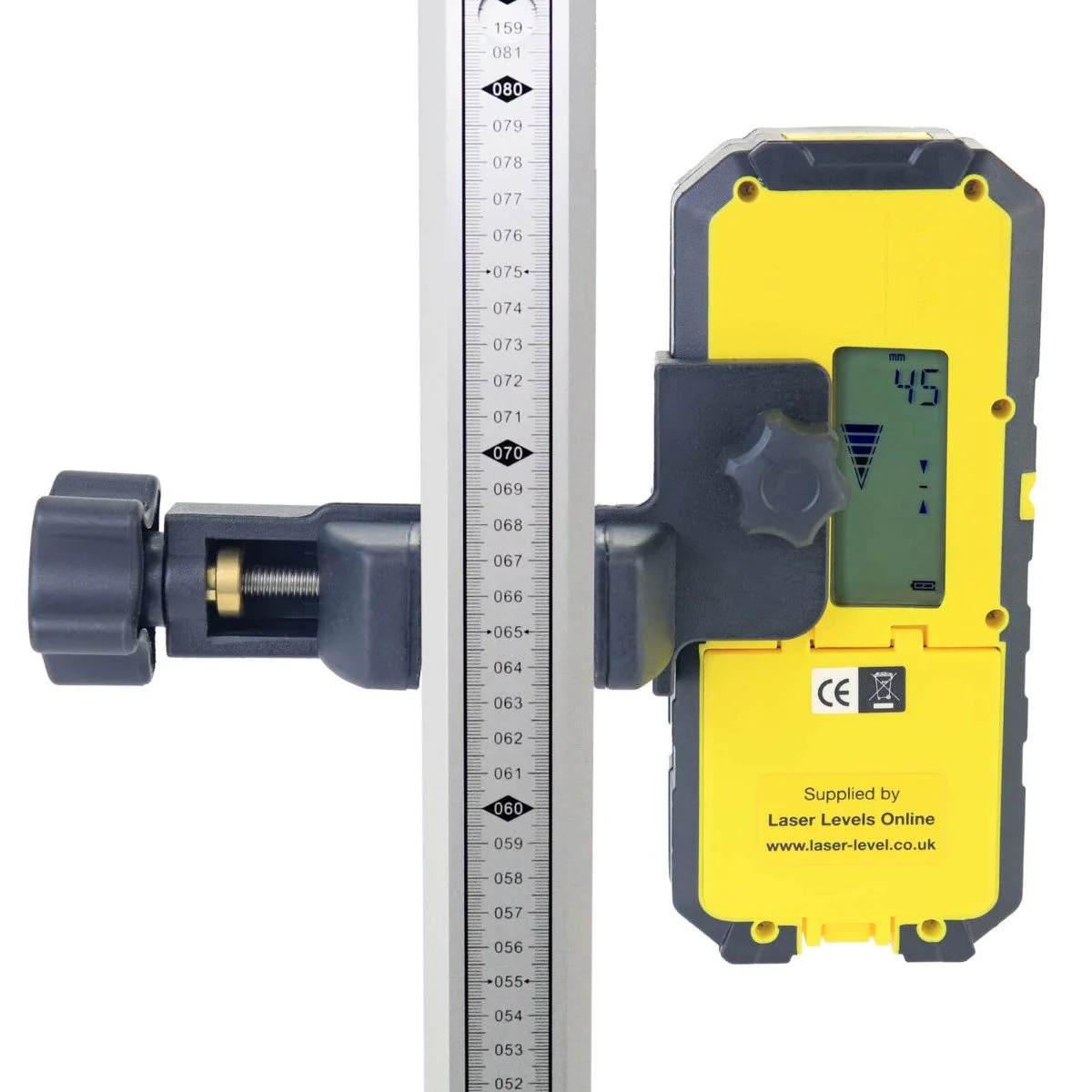

Fukuda FRD800G Laser Detector (receiver) to extend the range of the FRE-203XG to 500 metres diameter.

Features:

The FRD800G Laser Detector is a highly versatile, well-featured laser receiver for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors.

It features a digital readout of elevation that provides a numeric display of +/-45mm to 1mm resolution. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. The readout is displayed on the large front and rear LCD's, showing exactly how far the elevation is from on-grade. A back-light assists readings in low ambient lighting.

Selectable units of measurement can be displayed to meet your specific application: in mm, cm or inches. A 125mm long red pick-up window, more than double the industry standard, allows quick acquisition of the laser beam. Readings are shown in three ways: via back and front LCD, coloured LED indication and by audible sound, selectable loud/normal/off.

This detector is designed to survive tough construction site conditions, being water and dustproof to IP55.

It can be used as either a hand-held or staff mounted detector for a wide range of construction applications.

Technical specification

Accuracy:

+/- 2.8mm @ 30 metres, max. operating diameter 500m (250m either side of the instrument).

An accuracy of +/- 2.8mm @ 30 metres is equivalent to 0.09 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual axis X and Y axis up to +/-9% (1 in 11.1)

Both X & Y axis can be set to give a maximum fall of up to 0.9m at 10m distance away. (ie. 1 in 11.1 & +/-9% grade)

Also included in the kit

The Fukuda FRE-203XG Kit also includes the following accessories:

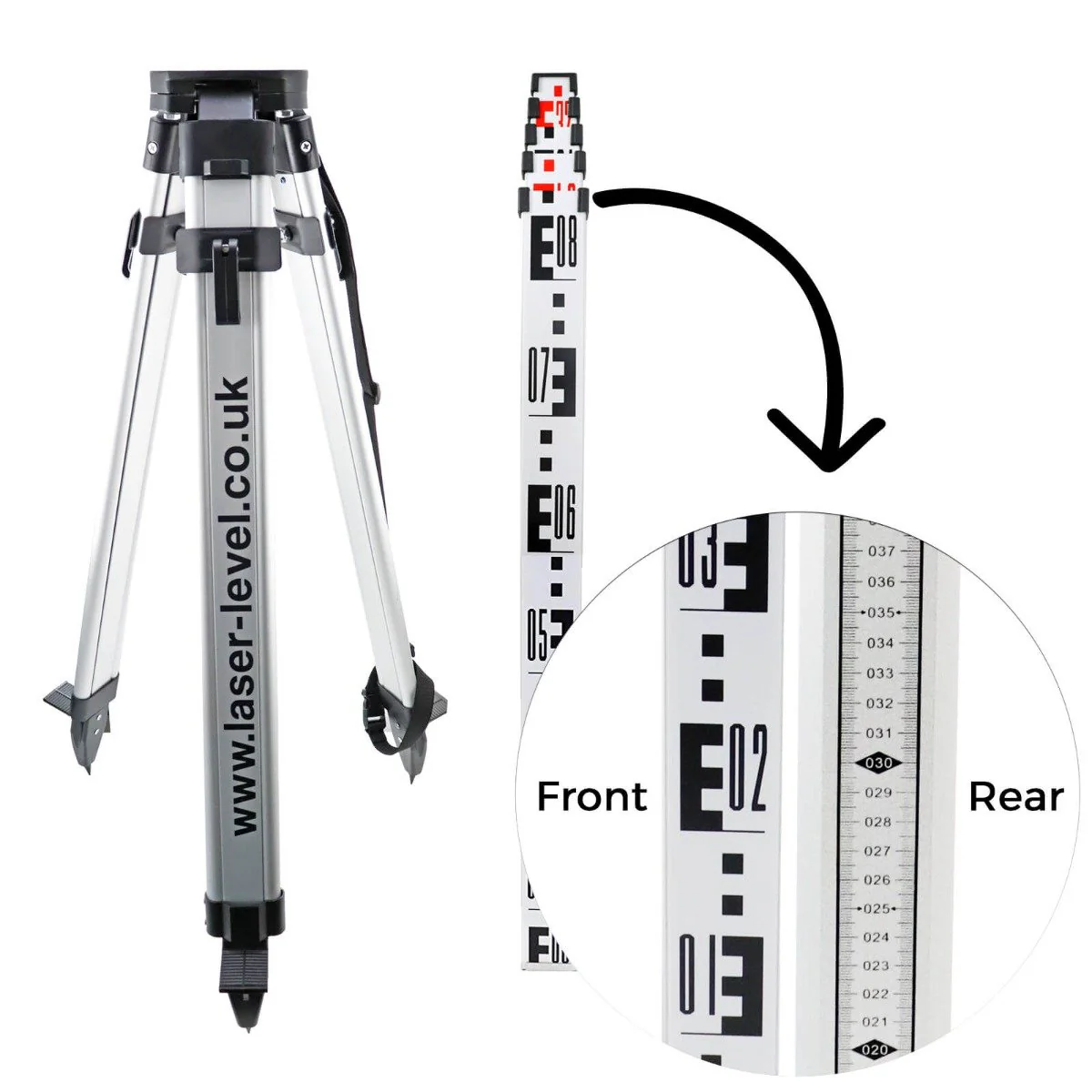

4m Telescopic Levelling Staff (Model: TLS4S)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Kit comprises of

Fukuda FRE-203XG Rotary Laser Level (checked and pre-calibrated)

Fukuda FRD800G Laser Detector with Digital Readout (mm / inch)

Fukuda RC301 Remote Control

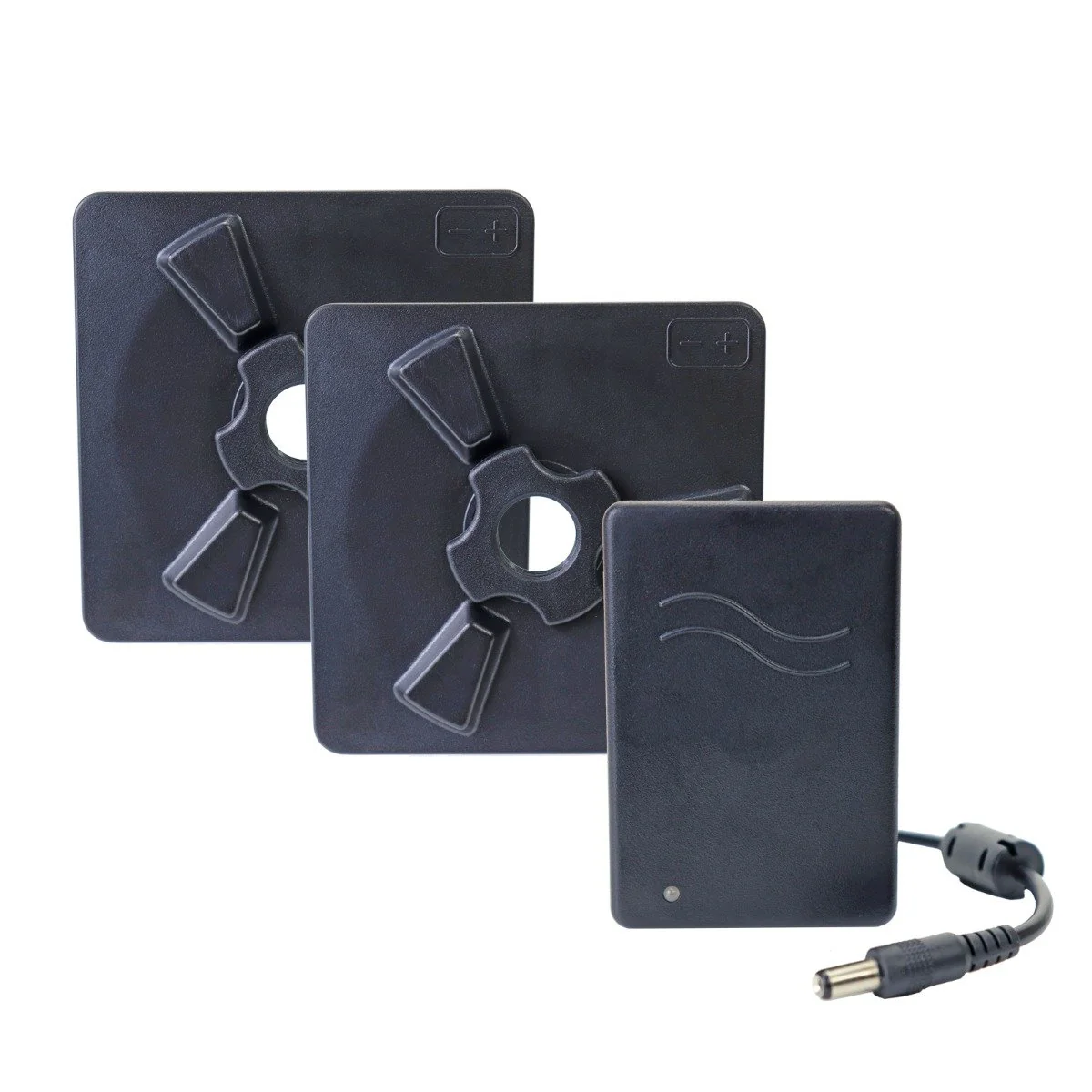

Rechargeable Battery Pack

Spare Alkaline Battery Pack

UK Mains Battery Charger

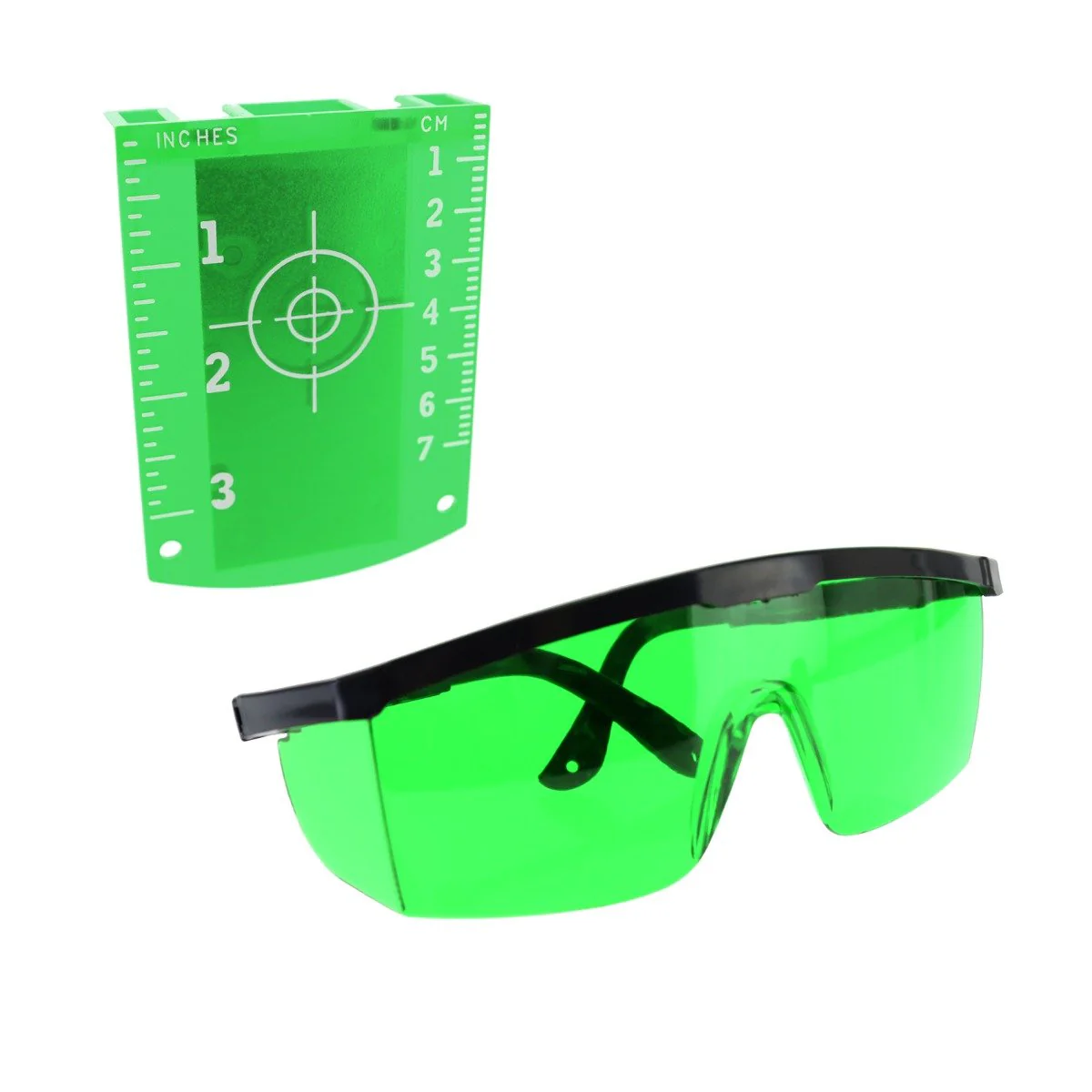

Green Laser Enhancement Glasses

Green Magnetic Target Plate

Surveying Tripod

4m Measuring Staff, type TLS4S

Paper Calibration Certificate

Foam Lined Carry Case

Quick Start Guide
