Fukuda FRE-205 DUO - Kit HIRE

Kit Overview

The FRE-205 is a horizontal levelling laser which has been designed specifically for exterior Groundworks. It is constructed with a rugged housing and has an automatic drift system (bump sensor), together with the facility to Dual Grade; making this the laser of choice for Groundworks Contractors.

Included Fukuda FRE-205 DUO kit is an EK-112R Cross line laser to cover most indoor work. Its auto levelling has very bright red beams & is supplied with an "L" shaped, magnetic mounting bracket (for wall mounting etc). This combination has proved to be very popular even for Groundworkers who have found the Crossline laser useful for other indoor tasks.



Rotary Laser Level:

The FRE-205 auto levels horizontally; is accurate to +/-3mm over 30m and has a 500 metre range, using the supplied laser detector.

For site Groundworks use, the laser has a dual grade facility too. Switch off the auto levelling by pressing the Manual button on the remote control. This enables the User to accurately and easily set slopes (grades) in both X and Y axis, as required.

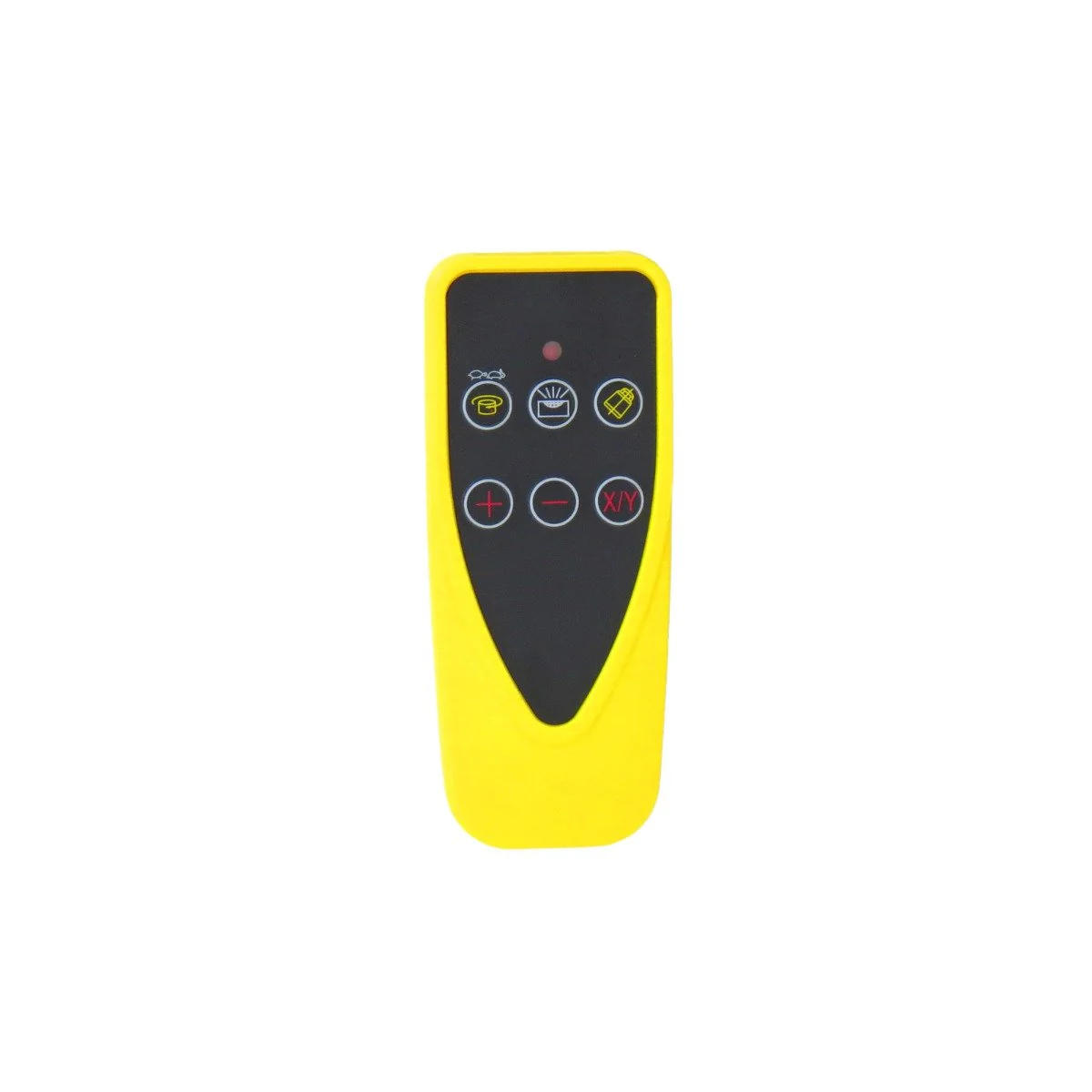

The FRE-205 kit also includes a remote control - to enable you to adjust the rotating speed (for indoor work) and outdoors - to set Grades (slopes), as described above. A very useful feature, which allows control from a distance without the laser level being disturbed.

Note: Outdoors, we recommend setting the rotating speed to maximum (600rpm) to give the best operating distance & stability, when using the detector. For User convenience, the FRE-205 can operate on either the 4pc x 'AA' Ni-MH rechargeable batteries (supplied) or 4pc standard 'AA' alkaline batteries.



Laser Detector (mm/inch)

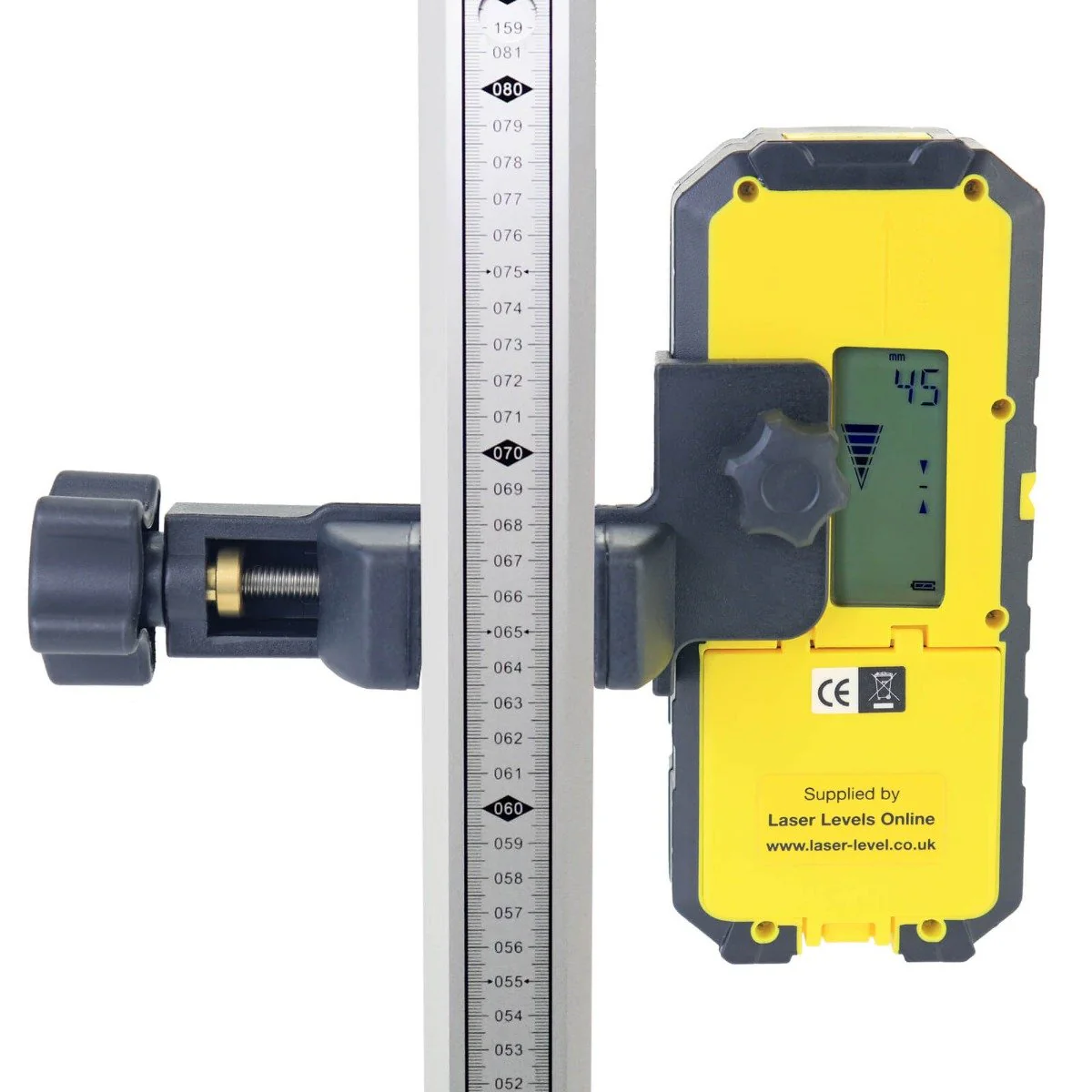

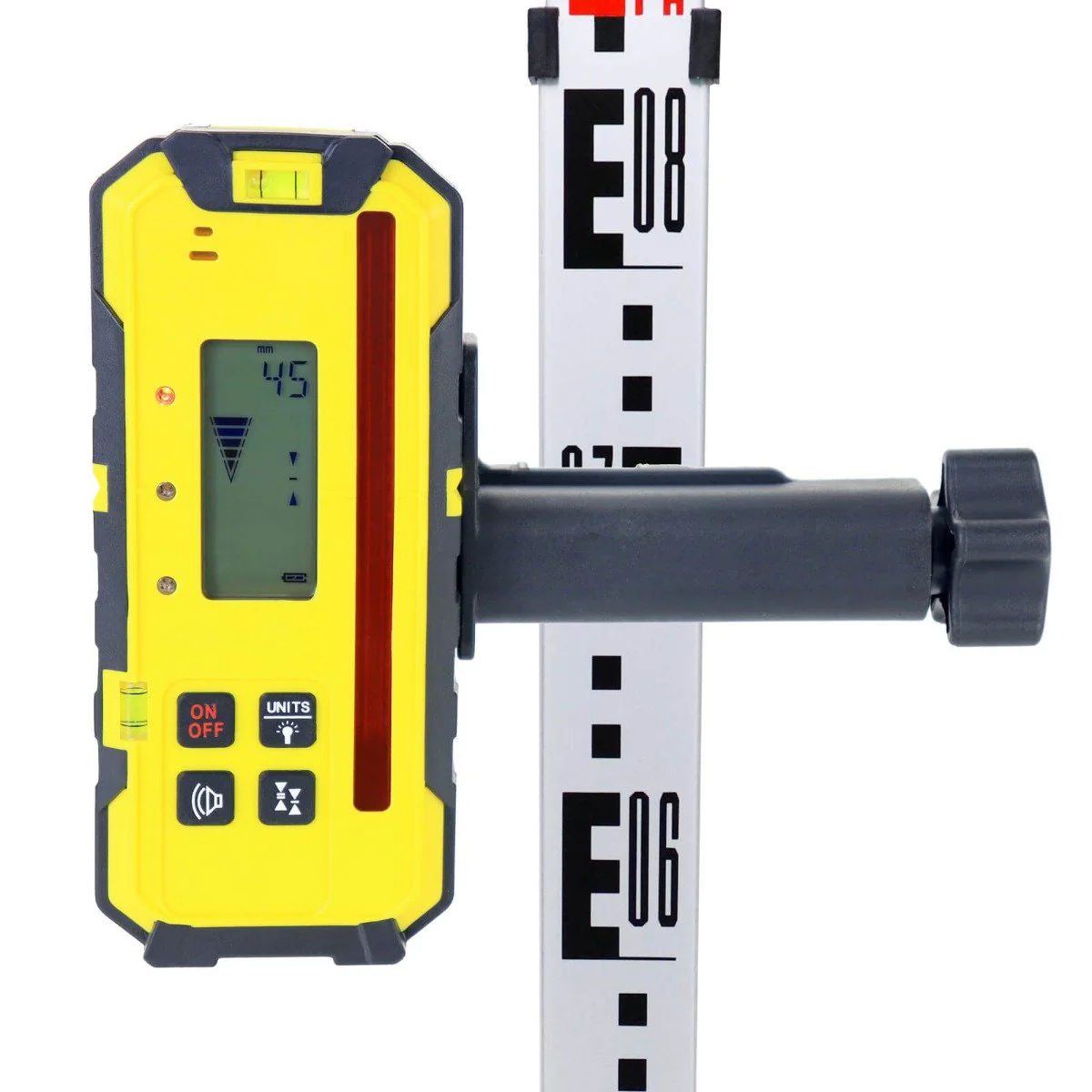

The FRD800R Laser Detector is a highly versatile, well-featured laser receiver for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors.

It features a digital readout of elevation that provides a numeric display of +/-45mm to 1mm resolution. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. The readout is displayed on the large front and rear LCD's, showing exactly how far the elevation is from on-grade. A back-light assists readings in low ambient lighting.

Selectable units of measurement can be displayed to meet your specific application: in mm, cm or inches. A 125mm long red pick-up window, more than double the industry standard, allows quick acquisition of the laser beam. Readings are shown in three ways: via back and front LCD, coloured LED indication and by audible sound, selectable loud/normal/off.

This detector is designed to survive tough construction site conditions, being water and dustproof to IP55.

It can be used as either a hand-held or staff mounted detector for a wide range of construction applications.



Cross Line Laser:

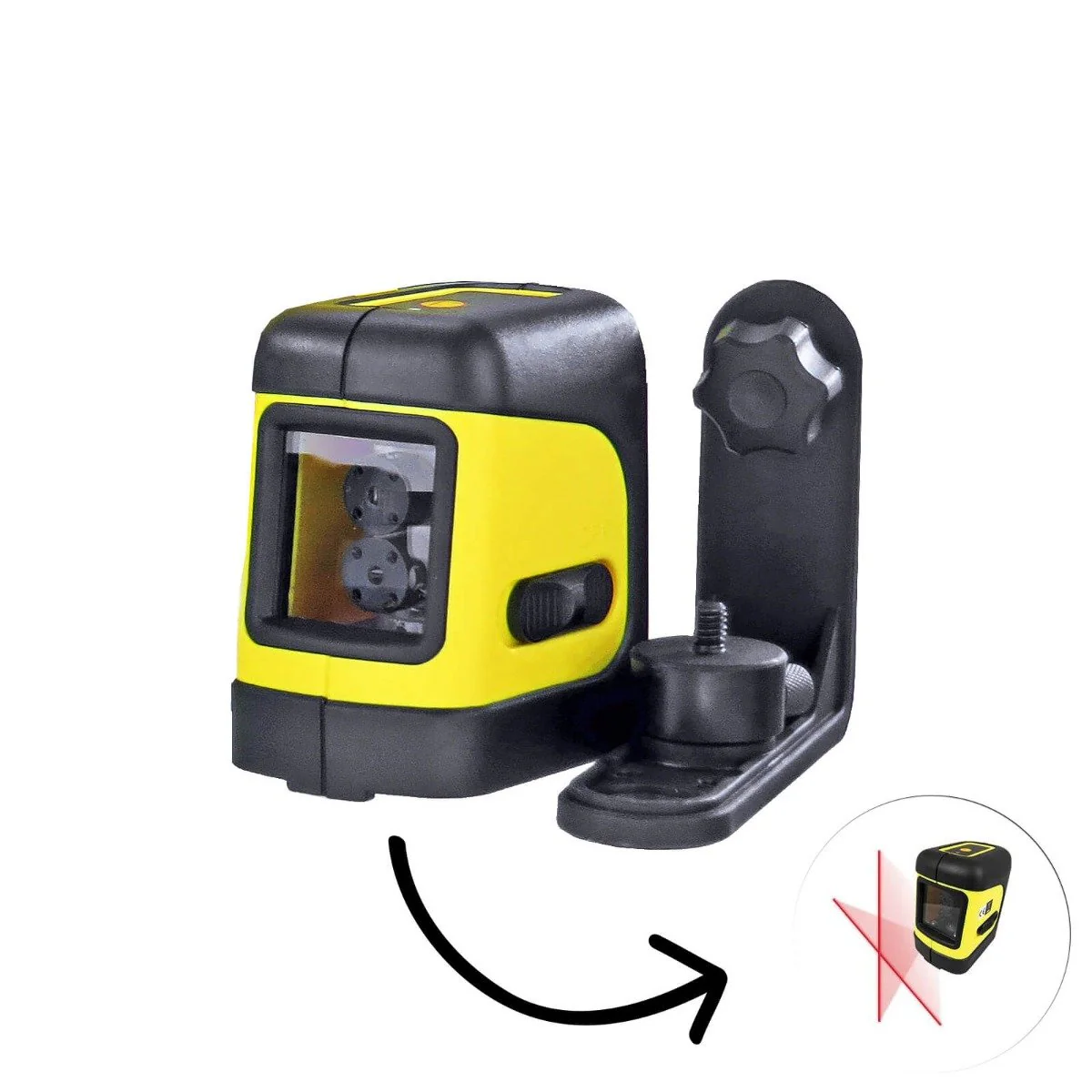

The EK-112R auto levels quickly & accurately; giving a fine, very bright, red laser cross - ideal for both horizontal & vertical setting-out. Both beams can be switched On & Off independently.

A transit latch protects the mechanism (to avoid transportation damage) and the case is surrounded by a black rubber cover for worksite protection.

It comes with a very handy multi-function magnetic "L" shaped bracket which acts as an All-in-One system: a wall mounting Bracket & a 5/8" tripod Adapter. This gives the User the choice of mounting the laser onto a tripod or a Floor to Ceiling Pole with either 1/4" or 5/8" threads. (Please see our Accessories section for various Pole Kits.)



This "2 in 1" DUO package covers both indoor & outdoor groundworks applications, for the General builder.

All in all, its a very versatile & popular kit.

Features

FRE-205 Rotary Laser

Horizontal setting only

Auto levelling

Anti-drift protection system. (bump sensor)

Dual grading in both the X / Y axis.

Automatic / Manual mode is easliy selected.

Variable speed rotation for maximum visibility in any lighting conditions.

Wide electronic self-levelling range (ie. It will auto level on surfaces up to +/-5 deg.)

Low battery indicator - so you don't run out of power at the wrong time!

Heavy duty glass enclosed beacon and durable sealed housing is water and dust-proof (to IP54), to ensure years of reliable operation.



EK-112R Cross Line Laser

Horizontal & Vertical red laser cross

Laser lines switchable independently

Auto levelling

Manual facility

Transit latch protection

Specification

FRE-205 Rotary Laser

Laser Diode: Class II, red beam 635nm

Horizontal accuracy: ±3mm @ 30 metres

Working range: Up to 500m diameter with the supplied Detector

Levelling type: Electronic Self-levelling

Rotational speed: Variable from zero to 60, 120, 300 & max 600rpm

Grade facility: Dual axis X and Y axis up to +/-9% (1 in 11.1)

IR Remote control: range approx. 20 metres

Operating temp: -20 to +50 deg C.

Protection: Water and dust-proof to IP54

Power: Ni-MH rechargeable batteries with mains charger (supplied), or 4 x size AA alkaline batteries can be used (not supplied).

Running time: approx. 25 hours continuous

Tripod Mounting thread: 5/8" - 11 tpi

Dimensions: 190L x 145W x 166H (mm)

Weight: 1.2kg with batteries



EK-112R Cross Line laser

Accuracy: +/-2mm @ 10 metres

Working range: approx. 10m depending on ambient light.

Mounting thread: 1/4"

Laser diode: red beam 635nm (1mW)

Laser class: 2

Self levelling range: +/-4 degrees to true horizontal.

Self levelling time: max. 5 secs.

Power supply: 2pc x AA alkaline batteries.

Battery life: at 20 deg C, 2 beams around 8hrs.

Operating temperature: -10 to +50 deg C

Unit dimensions: 82 x 57 x 90mm

Weights: Instrument with batteries, 360g.

Weights: Complete kit with bracket & carry case etc, 590g.

Technical specification

Accuracy:

+/- 3mm @ 30 metres, max. operating diameter 500m (250m either side of the instrument).

An accuracy of +/- 3mm @ 30 metres is equivalent to 0.1 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual Grade facility:

Dual axis X and Y axis up to +/-9% (1 in 11.1)

Both X & Y axis can be set to give a maximum fall of up to 0.9m at 10m distance away. (ie. 1 in 11.1 & +/-9% grade)

Example usage

This DUO kit is designed to be used by Groundworks Contractors for:

General earthworks for footings, foundations, slab laying, drainage & landscaping etc.

&

for Internal Trades:

Ideal for wall Tiling / Stud wall & partitioning / Kitchen & bedroom unit installations / all Shop Fitting & refurbishment work / Electrical conduit & lighting / Plumbing & Pipework / Shelving systems & many others.

Also included in the kit

The Fukuda FRE-205 DUO Kit also includes the following accessories:

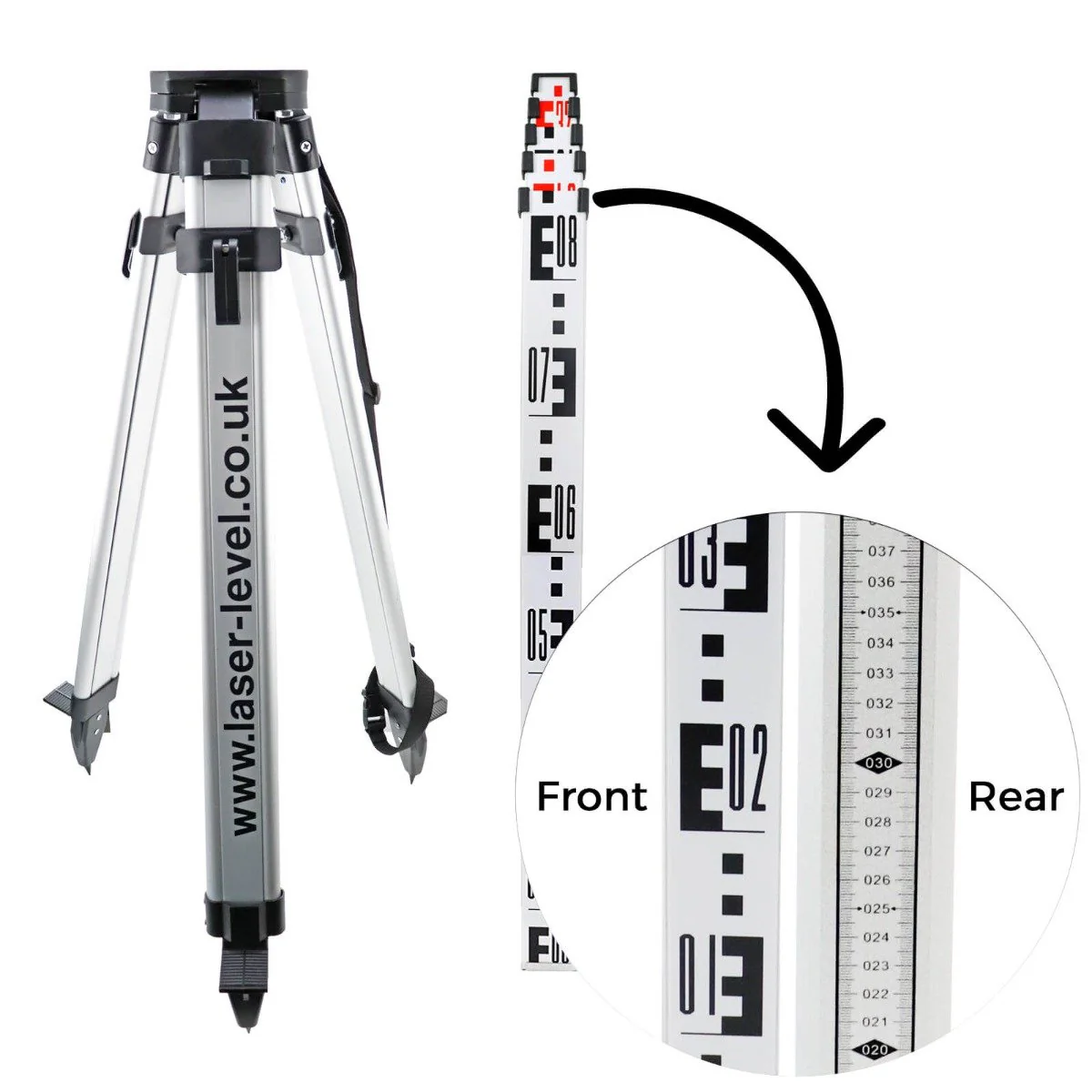

4m Telescopic Levelling Staff (Model: TLS4S)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Kit comprises of

3ʳᵈ Generation Fukuda FRE-205 Rotary Laser Level (checked and pre-calibrated)

Fukuda FRD800R Laser Detector with Digital Readout (mm / inch)

Fukuda RC205 Remote Control (for FRE-205)

Fukuda EK-112R Cross Line Laser (checked and pre-calibrated)

L-shaped Magnetic Wall Bracket (for EK-112R)

4 x AA Rechargeable Batteries (for FRE-205)

2 x AA Alkaline Batteries (for EK-112R)

UK Mains Battery Charger

Red Magnetic Target Plate

Surveying Tripod

4m Measuring Staff, type TLS4S

Paper Calibration Certificate

Foam Lined Carry Case

Quick Start Guide
