Topcon RL-H5A Rotating Laser Level Kit is the next generation of self levelling construction Lasers. With a high accuracy and a long range, the RL-H5A is simple to use for checking elevations. Proven reliability on any job site with long-range consistency and ease of use.

With electronic self-levelling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±1.5 mm at 30m..

The instrument has the power and range to cover a 800m diameter job site.

The RL-H5A gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with (4) D cell batteries.

With the IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.

Include this Topcon LS-100D Detector with Digital Readout (mm/inch). Shows the mm/inch scale to see the elevation or drop on the display e.g 10mm - 8mm - 5mm - 2mm - LEVEL. Includes Holder 110.

Specification

RL-H5A Laser Specifications:

Laser Source: Laser diode (Visible, 635 nm) IEC Class 2

Laser Accuracy: ±1.5 mm at 30m, (±1/16 in at 100 ft)

Laser Operating Range: 800m diameter (with detector)

Self-leveling Range: ±5 degrees

Compensation Method: Electronic self-leveling

Single Axis Manual Slope Mode: Yes

Power Source: Ni-MH battery pack BT-79Q (7000mAh) or 4xD size dry cell batteries (alkaline)

Battery Life: Rechargeable 60 hours, or Alkaline 100 hours

Charging Time: Approx 13 hours (Using with AD-17C/E)

Rotation Speed: 600rpm

Tripod Mount (Horizontal and Vertical): 5/8” x 11

Operating Temperature: -20 to 50°C (-4 to 122°F)

Storage Temperature: -30 to 60°C (-22 to 140°F)

Water and Dust Protection: Yes, IP66 (IEC60529: 2001)

Size: 172 (L) x 211 (W) x 205 (H) mm

Weight: 2.5 kg (5.5 lbs) (with BT-79Q) or 2.3 kg (5.1 lbs) (with dry cell batteries)

Detector features

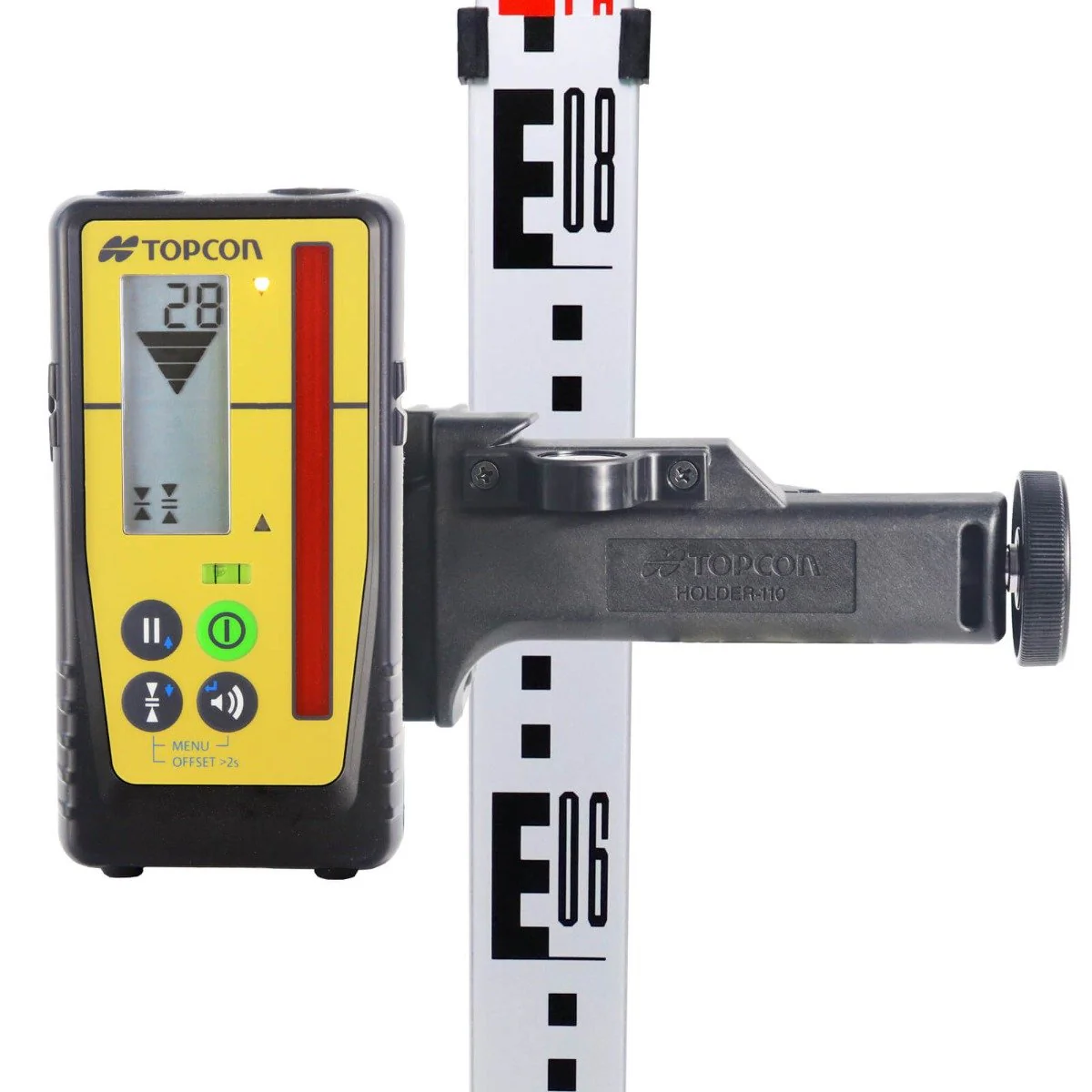

Kit includes LS-100D Detector & Bracket:

Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.

It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three colored LED’s and a strong magnet mount are embedded for vertical operation, ideal for steel erection or operator grade checking while excavating.

To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI alert) or when the laser battery is low.



Specification:

Working Range (diameter): 800m

Vertical Detecting Range: 90 mm (3.5 in.); (-30 mm to +60 mm) (-1.1 in to +2.3 in.)

LCD Digital Readout Range: 70 mm (2.7 in.); (-20 mm to +50 mm) (-0.7 in. to +1.9 in.)

Strobe Light Suppression: Yes

Unit: mm / cm / inch / fractional inch

On-Grade Resolution:

±0.5 mm (±0.02 in.):

±1.0 mm (±0.05 in.)

±2.0 mm (±0.10 in.)

±5.0 mm (±0.20 in.)

±10.0 mm (±0.50 in.)

LCD Grade Indicators 9 Channels

LED Grade Indicators: Orange, Green, Red (On/Off selectable)

Display LCD on each side

Buzzer: Loud/Low/Off selectable

Operating Time: Up to 45 hours with alkaline batteries

Battery Level Indicator: LCD Icon

Auto Shut-off Approx: 30 minutes

Dust/Water Rating: IP67 (IEC 60529)



LS-100D Detector upgrade includes:

LS-100D instrument

AA Alkaline batteries x 1

Mounting bracket

Instruction & safety manual

Technical specification

Accuracy:

+/- 1.5mm @ 30 metres, max. operating diameter 800m (400m either side of the instrument).

An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Example usage

Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized job.

Basic slope work such as driveways and ramps

Excavations, digging footings and septic tanks

Also included in the kit

The Tocon RL-H5A Rotary Kit also includes the following accessories:

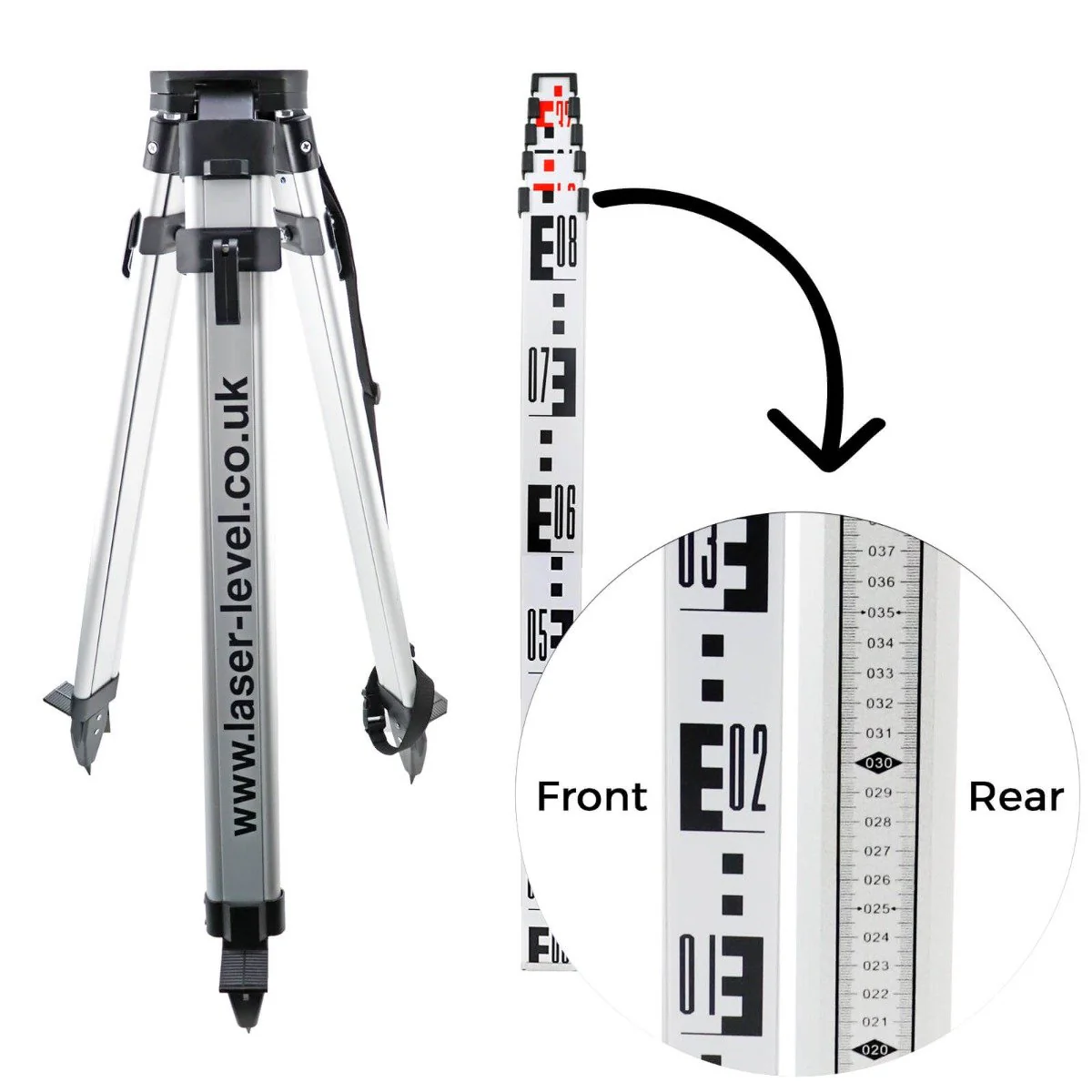

4m Telescopic Levelling Staff (Model: TLS4S)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

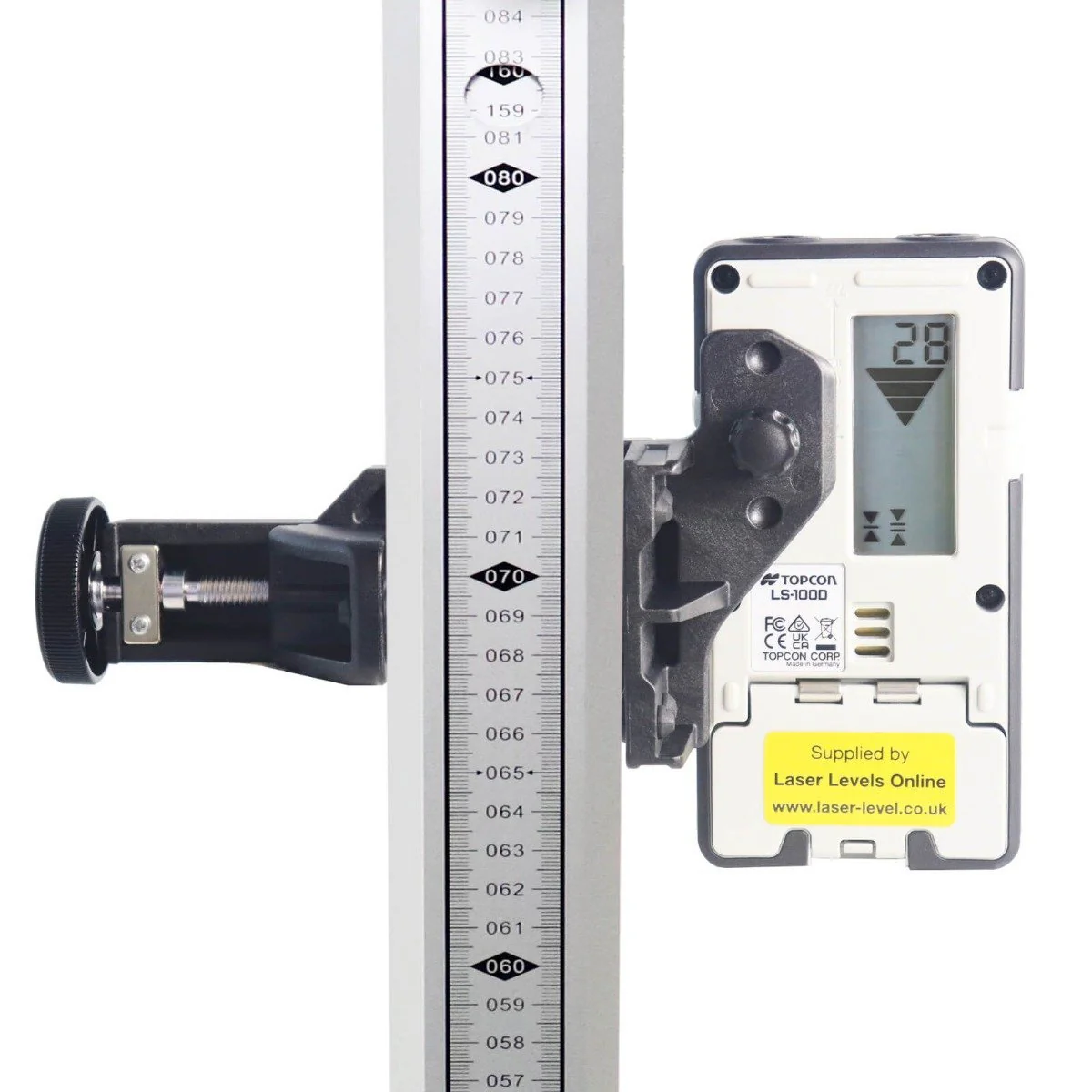

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.



Surveying Tripod (Model: S-LAT)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Kit comprises of

Topcon RL-H5A Rotary Laser Level (checked and pre-calibrated)

Topcon LS-100D Laser Detector With Staff Mounting Bracket (Holder 110) & Batteries

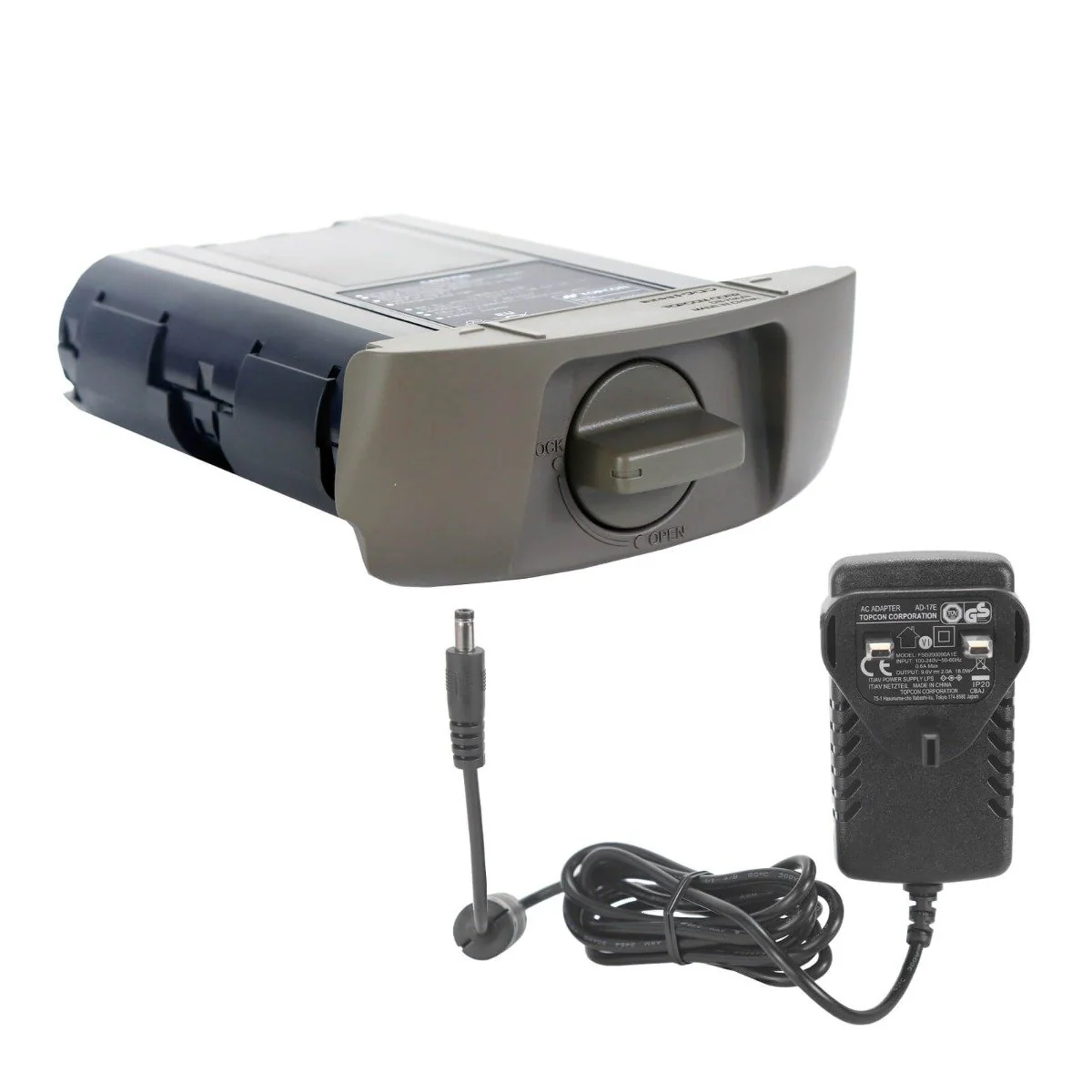

Rechargeable Battery Pack, BT-79Q

Battery Cradle, DB-79A/B

UK Mains Battery Charger, AD-17C/E

Surveying Tripod

4m Measuring Staff, Type TLS4S

Robust Carry Case

Quick User Guide & Safety Manuals
